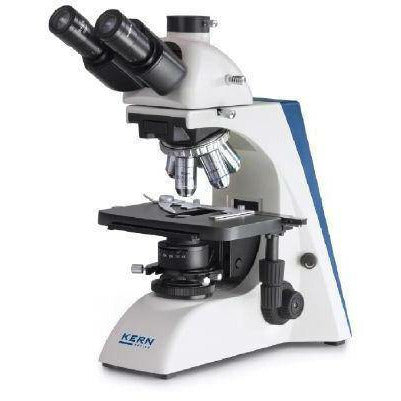

Kern OBN-13: Professional and versatile ‰ÛÒ with K̦hler illumination for demanding applications
151400
Kern OBN-13: Professional and versatile ‰ÛÒ with K̦hler illumination for demanding applications
151400
- The OBN series stands out because of its unbeatable and consistently high quality and its ergonomic design. The range of modular components means that the OBN series can be individually customised for the professional user
- Depending on the application, there is a choice of models with strong, continuously dimmable 3 W LED or 20 W halogen illumination (Philips)
- This series has a professional Koehler illumination unit with an adjustable field diaphragm as well as a height-adjustable 1,25 Abbe condenser which can be centred and which has an adjustable aperture diaphragm

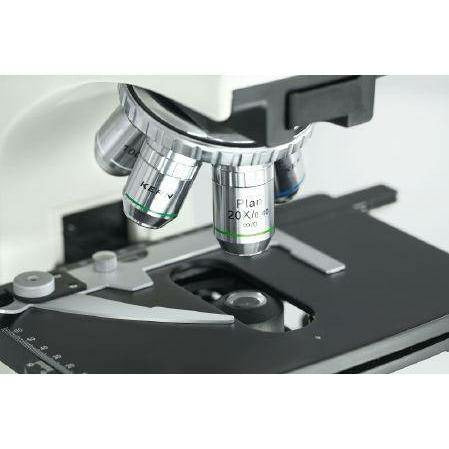

- The extremely large mechanical stage table with ergonomic, coaxial coarse and fine focusing knob on both sides enables you to adjust and focus your sample rapidly and accurately
- A wide variety of modular systems, such as, for example, a swing-out condenser, various eyepieces, objectives, colour filters, phase contrast units, a darkfield condenser, a simple polarising unit through to complete fluorescence units are available to you as accessories
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of the delivery
- A C-mount adapter is required to connect a camera. You can select this adapter from the following model outfit list
Technical data
- Infinity optical system
- 5-fold lens revolving unit

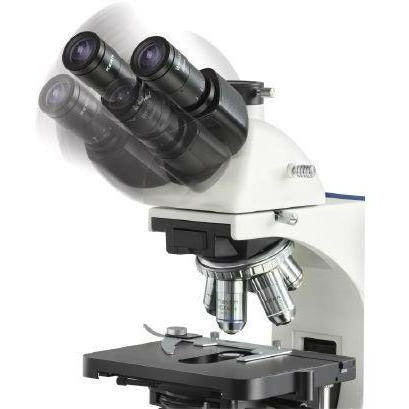

- Siedentopf 30° inclined, 360° rotatable
- Overall dimensions W×D×H 390×200×400 mm
Scope of application
- Haematology, urology, gynaecology, dermatology, pathology, microbiology and parasitology, immunology, oncology, entomology, vets, sewage treatment plants, water analysis, breweries
Applications/Samples
- Translucent, thin, low-contrast, challenging samples (e.g. living mammal cells, bacteria, tissue)
