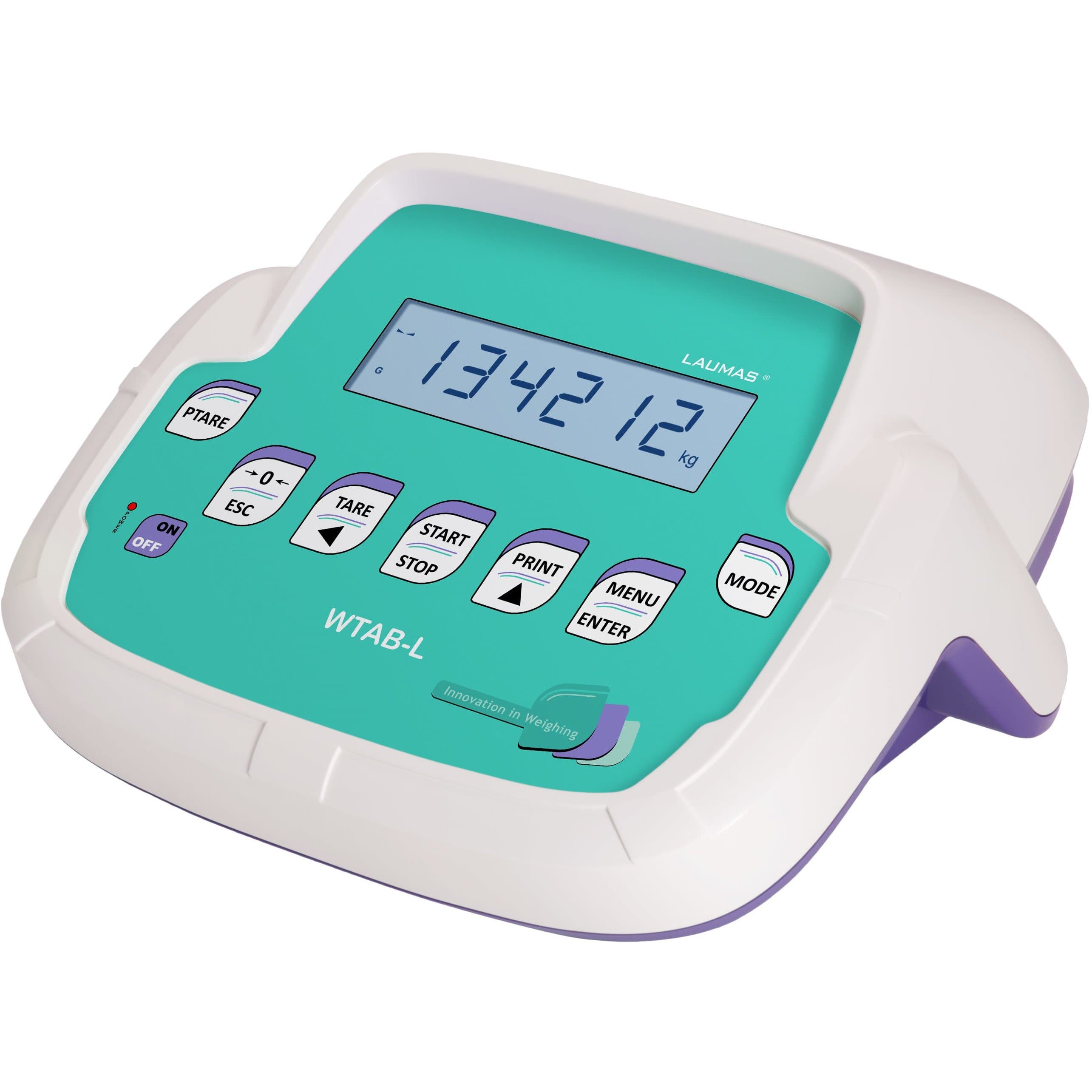

Laumas WTAB-L weight indicator is suitable for desk mounting and has a six-digit backlit LCD display, 20 mm tall. It is suitable for basic weighing applications. The Laumas WTAB-L weight indicator has RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol) and optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet for communication with other equipment. It is fitted with 3 logic inputs, 5 relay outputs.

• ABS Weight Indicator, dimensions 315 x 315 x 170 mm. IP40 protection rating. Eight-key membrane keyboard. 46 indicator symbols. Real time clock/calendar.
• Ideal for desk mounting, ergonomic design
• Six-digit backlit LCD display, 20 mm height
• RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
• 3 logic inputs, 5 relay outputs
• OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
• OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
• Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.
• A/D converter 24bit (16000000 points) 4.8 kHz
• Display range 999999

Some optional features:

• Integrated thermal printer
• Data storage on USB pen drive
• 16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V

Click here for full specification
