Laumas WDESK-R Weight Indicator
45144
Laumas WDESK-R Weight Indicator
45144

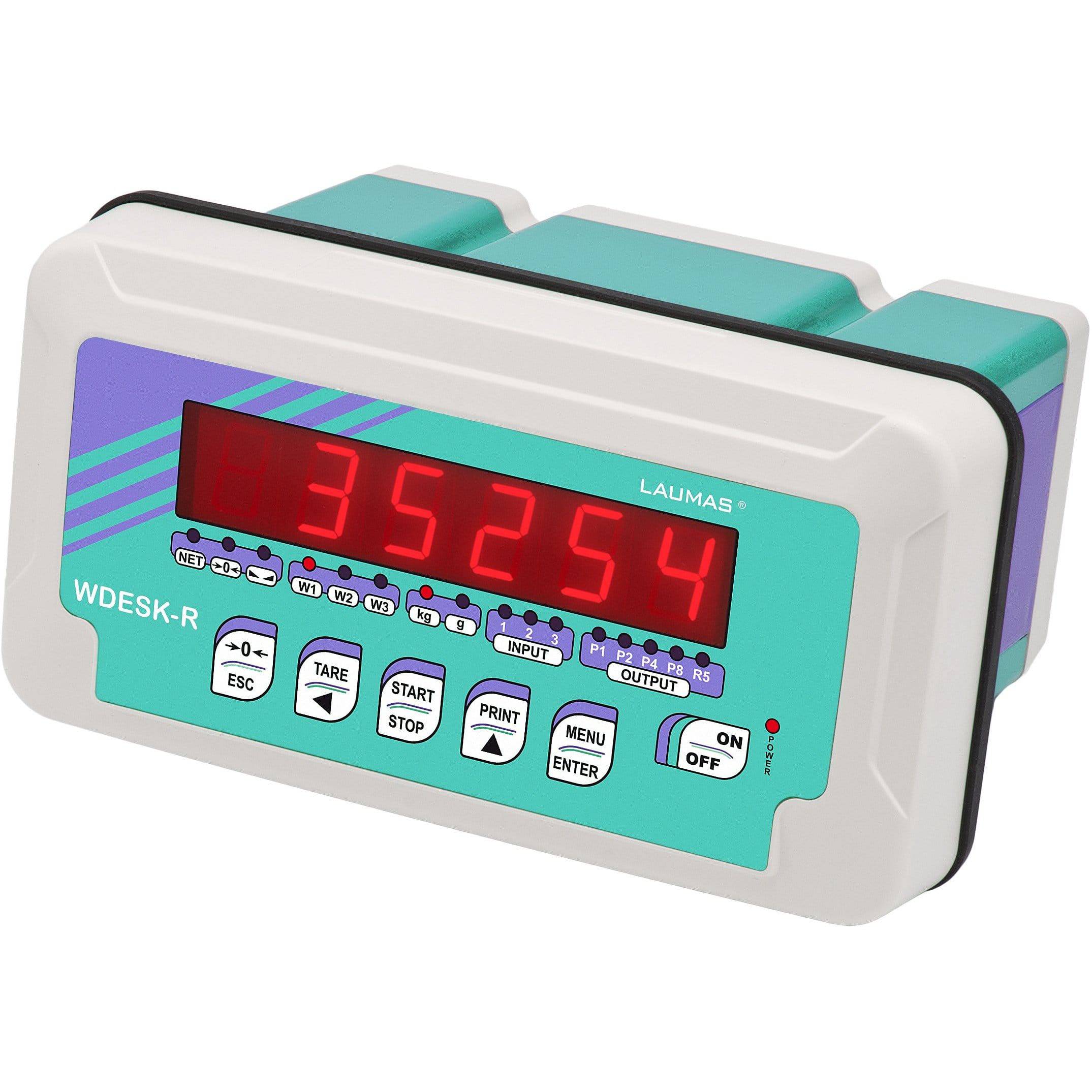

Laumas WDESK-R weight indicator is suitable for wall, panel, column or desk mounting and has a six-digit red LED display, 20 mm tall. It is suitable for multiprogram: single loading/unloading and multi-product batching. The Laumas WDESK-R weight indicator has RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol) and optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet for communication with other equipment. It is fitted with 3 logic inputs, 5 relay outputs.
ABS Weight Indicator, dimensions 122 x 226 x 164 mm. IP67 protection rating. Six-key membrane keyboard. 16 indicator led. Real time clock/calendar.
Different versions for various types of electrical connections: cable glands, D-SUB connectors, removable terminal.
Different versions for various types of electrical connections: cable glands, D-SUB connectors, removable terminal.
- Possible installations: wall, panel, column, desk
- Multiprogram: single loading/unloading and multi-product batchings, max 99 formulas
- Six-digit red LED display, 20 mm height
- RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
- 3 logic inputs, 5 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- OIML R61 approved - WELMEC Guide 8.8:2011 (M.I.D.)
- Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via internet from PC, smartphone or tablet, etc.
- A/D converter 24bit (16000000 points) 4.8 kHz
- Display range 999999
Some optional features:
- Data storage on USB pen drive
- ATEX II 3GD version
- 16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V
