Kern UID Floor Scales

Kern
123560

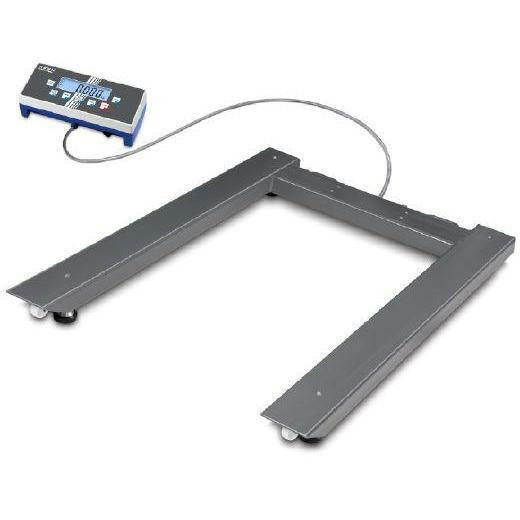

Kern UID floor scales with capacities from 600 kg to 3000 kg. Kern UID floor scales are a high-resolution dual-range pallet scale with M Class approval for trade use. There are a large number of connectivity options available for this balance. They are available with an optional calibration certificate and a range of accessories.

  • Dual-range pallet scale! Ideal, when high maximum loads need to be weighed, but in the lower load range you still need high resolution. This means that two balances can be replaced with one – which saves space and money!
  • High mobility thanks to battery operation for display device and platform
  • Load support: steel, powder coated, 4 silicone-coated aluminium load cells, protection against dust and water splashes IP67
  • The scale can be easily transported using 2 rollers and a handle and does not require much storage space
  • Thanks to interfaces such as RS-232 or USB, WiFi, Bluetooth, Ethernet (optional), the scale can easily be connected to existing networks. Data exchange between the scale, PC or printer
  • Dosage aid controlled through the display. Only possible through RS-232 data interface
  • NEW: from now on the calibrated models can be operated with an optional data interface, such as Bluetooth, WiFi, LAN (optional alibi memory required). This enables convenient data transfer of weighing results in legal-for-trade applications
  • Possible application scenarios for interfaces:
    - RS-232, included in the scope of delivery, e.g. for connecting a PC or printer
    - LAN, WiFi, Bluetooth, USB for PC, optional, e.g. for connecting a PC or peripheral device
    - USB for USB stick, optional, e.g. for exporting alibi data to a USB stick or hard disk
    - Digital I/O, including signal lamp, optional, e.g. for optical support during weighing with tolerance range, piece counting etc.
  • Protective working cover included with delivery
  • Note: For verified scales the weighing bridge must be fixed to the floor. Optionally, with an access ramp, a footplate pair or a pit frame
  • Limited tare range with verifiable models (1/6 from [Max])
  • Our large, heavy KERN floor scales are sent in a sturdy wooden crate, to ensure safe transportation and protection of the measuring equipment

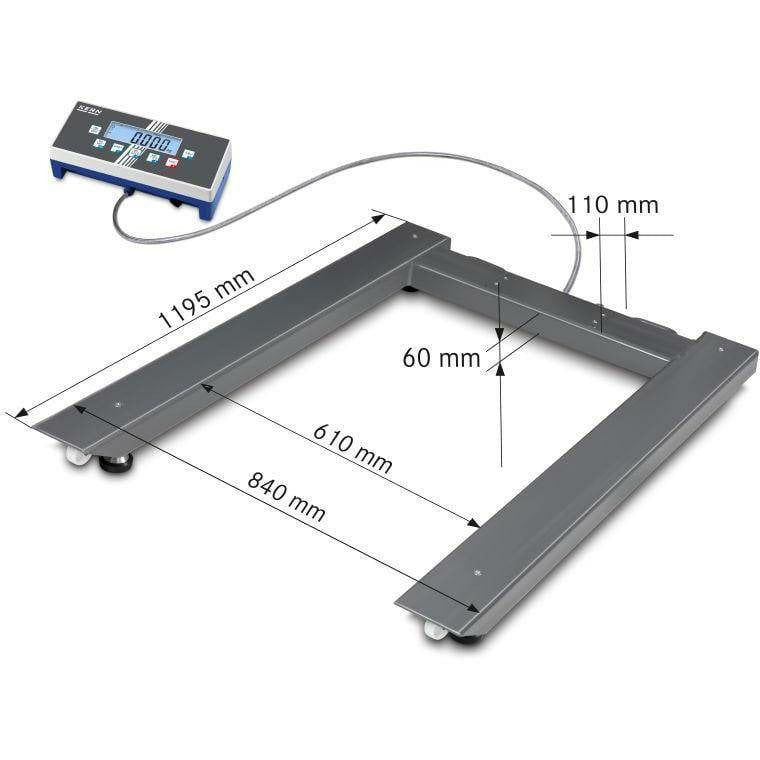

Model Weighing capacity Readability Weighing plate
[Max] [d] mm
(WxD | Dia)
UID 1500K-1DM 600 kg | 1500 kg 200 g | 500 g 1195  mm x 840  mm
UID 1500K-1M 1500 kg 500 g 1195  mm x 840  mm
UID 3000K-0DM 1500 kg | 3000 kg 500 g | 1000 g 1195  mm x 840  mm
UID 3000K-0M 3000 kg 1 kg 1195  mm x 840  mm
UID 600K-1DM 300 kg | 600 kg 100 g | 200 g 1195  mm x 840  mm
UID 600K-1M 600 kg 200 g 1195  mm x 840  mm



Standard

Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.Data interface RS-232: To connect the balance to a printer, PC or networkPiece counting: Reference quantities selectable. Display can be switched from piece to weight.Totalising level A: The weights of similar items can be added together and the total can be printed out.Weighing with tolerance range: Upper and lower limiting can be programmed individually, e. g. sorting and portioning.Fast move: the total length of travel can be covered by a single lever movement.IP 67 protection in accordance with DIN EN 60529: Designed for temporary use in wet areas. Can be cleaned with water jet. Temporary submersion is possible. Dustproof.Universal mains adapter: with universal input and optional input socket adapters for EU, GBStrain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowingVerification possible. The time required for verification is specified in the pictogram.

Optional

Alibi memory: Electronic archiving of weighing results, complying with the 2009/23/EC standard.USB data interface: To connect the balance to a printer, PC or other peripherals.WIFI data interface: To transfer data from the balance to a printer, PC or other peripherals.Network interface: For connecting the scale to an Ethernet network. With KERN products you can use a universal RS-232/LAN converter.
