Kern BID Floor Scales - GNW Instrumentation

Kern BID Floor Scales

Kern
170600

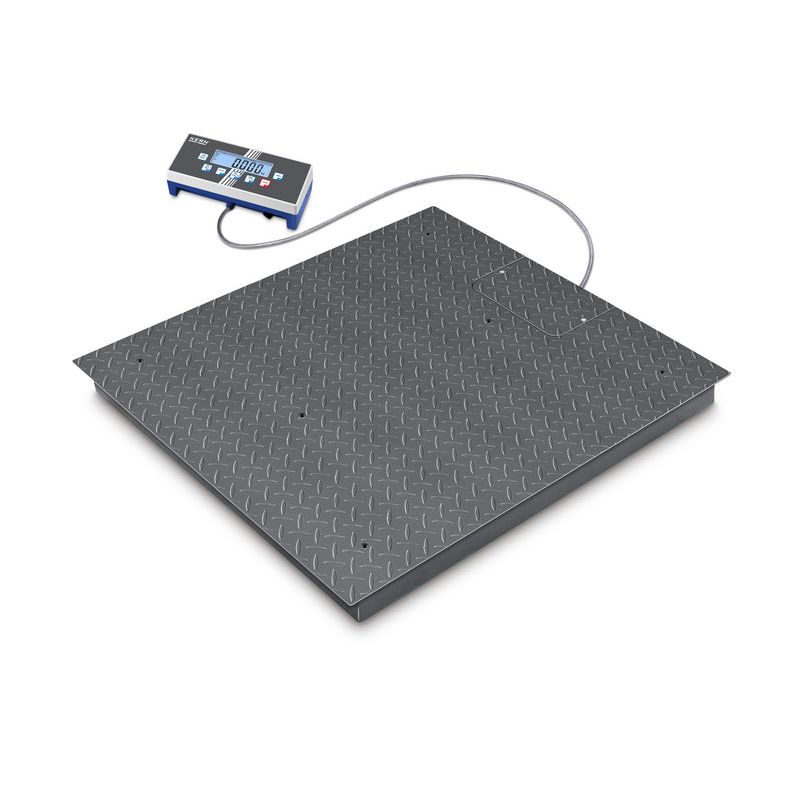

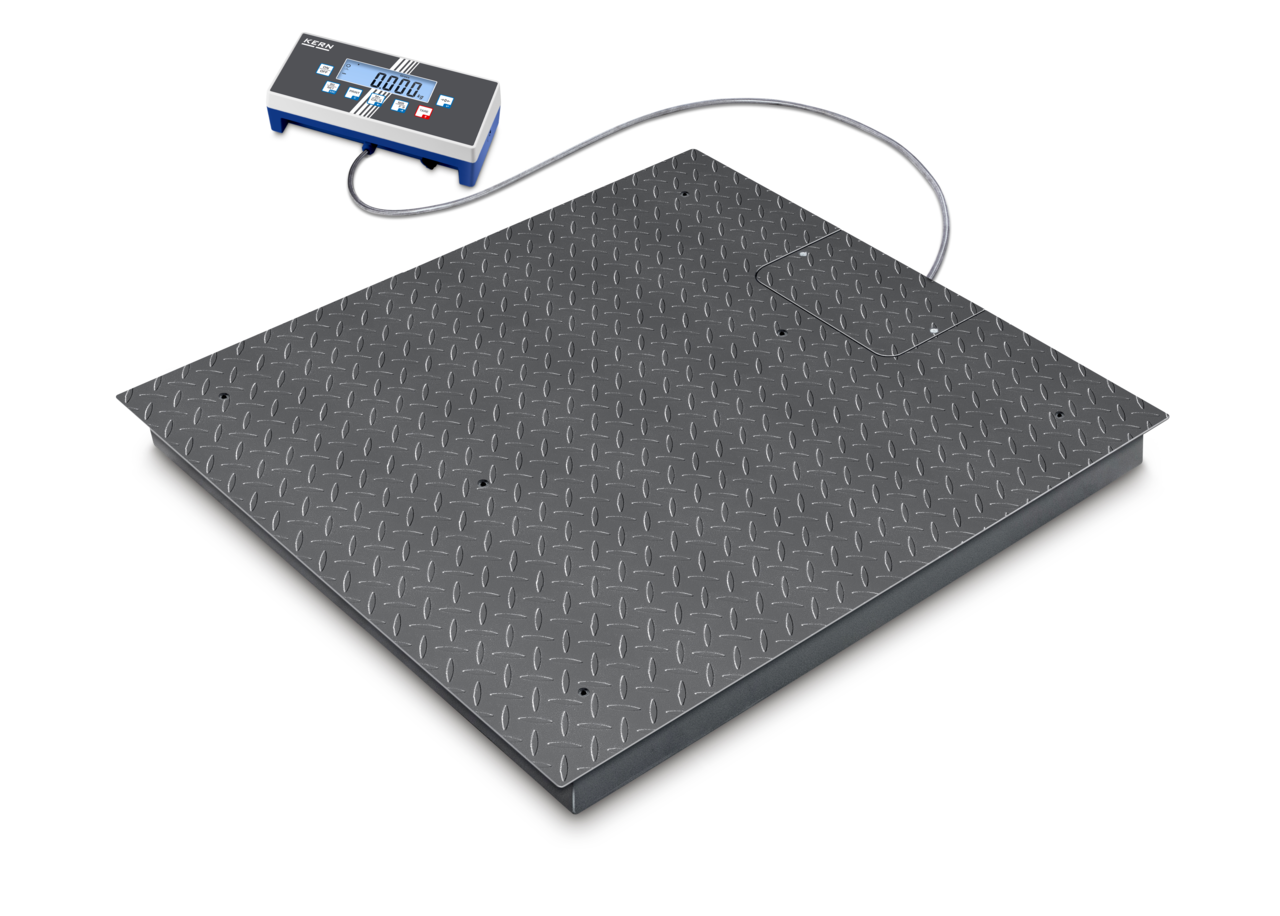

Kern BID floor scales with capacities from 600 kg to 3000 kg. Kern BID floor scales are a high resolution scale that is M Class approved for trade use. They are available with an optional calibration certificate and a range of accessories.

  • NEW: now also available as a dual-range balance! Ideal, when high maximum loads need to be weighed, but in the lower load range you still need high resolution. This means that two balances can be replaced with one - which saves space and money!
  • BID 1T-4EM: Compact special sizes, specially for weighing European pallets
  • Weighing bridge: out of anti-slip corrugated steel, 4 silicone-coated steel load cells, dust and spray protection IP67
  • Easy levelling of the weighing bridge as well as access to the junction box from above
  • Benchtop stand incl. wall mount for display device as standard
  • Totalising of weights and piece counts
  • Thanks to the RS-232 and Bluetooth interfaces, the balance can easily be connected to existing networks. Data exchange between the balance and PC or printer is also made easier
  • Dosage aid controlled through the display
  • NEW: from now on the calibrated models can be operated with an optional data interface, such as Bluetooth, WiFi, LAN (optional alibi memory required). This enables convenient data transfer of weighing results in legal-for-trade applications
  • Possible application scenarios for interfaces:
    - RS-232, included in the scope of delivery, e.g. for connecting a PC or printer
    - LAN, WiFi, Bluetooth, USB for PC, optional, e.g. for connecting a PC or peripheral device
    - USB for USB stick, optional, e.g. for exporting alibi data to a USB stick or hard disk
    - Digital I/O, including signal lamp, optional, e.g. for optical support during weighing with tolerance range, piece counting etc.
  • Note: For verified scales the weighing bridge must be fixed to the floor. Optionally, with an access ramp, a footplate pair or a pit frame
  • Our large, heavy floor scales are sent in a sturdy wooden crate, to ensure safe transportation and protection of the measuring equipment
Model Weighing capacity Readability Weighing plate
[Max] [d] mm
(WxD | Dia)
BID 1T-4DM 600 kg | 1500 kg 200 g | 500 g 1200  mm x 1500  mm
BID 1T-4DSM 600 kg | 1500 kg 200 g | 500 g 1000  mm x 1000  mm
BID 1T-4EM 1500 kg 500 g 1200  mm x 1000  mm
BID 1T-4LM 1500 kg 500 g 1500  mm x 1500  mm
BID 1T-4M 1500 kg 500 g 1200  mm x 1500  mm
BID 1T-4SM 1500 kg 500 g 1000  mm x 1000  mm
BID 3T-3DLM 1500 kg | 3000 kg 500 g | 1000 g 1500  mm x 1500  mm
BID 3T-3DM 1500 kg | 3000 kg 500 g | 1000 g 1200  mm x 1500  mm
BID 3T-3LM 3000 kg 1 kg 1500  mm x 1500  mm
BID 600K-1DM 300 kg | 600 kg 100 g | 200 g 1200  mm x 1500  mm
BID 600K-1DSM 300 kg | 600 kg 100 g | 200 g 1000  mm x 1000  mm
BID 600K-1M 600 kg 200 g 1200  mm x 1500  mm
BID 600K-1SM 600 kg 200 g 1000  mm x 1000  mm



Standard

Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.Data interface RS-232: To connect the balance to a printer, PC or networkGLP/ISO log: with weight, date and time. Only with KERN printers, see AccessoriesPiece counting: Reference quantities selectable. Display can be switched from piece to weight.Totalising level A: The weights of similar items can be added together and the total can be printed out.Percentage determination: Displays the deviation from the reference weight (100%) in % instead of grams.Weighing with tolerance range: Upper and lower limiting can be programmed individually, e. g. sorting and portioning.Vibration-free weighing: (Animal weighing program) Vibrations are filtered out so that a stable weight is obtained.IP 65 protection in accordance with DIN EN 60529: Designed for temporary contact with liquids. Use a damp cloth for cleaning. Dustproof.IP 67 protection in accordance with DIN EN 60529: Designed for temporary use in wet areas. Can be cleaned with water jet. Temporary submersion is possible. Dustproof.Universal mains adapter: with universal input and optional input socket adapters for EU, GBStrain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowingVerification possible. The time required for verification is specified in the pictogram.

Optional

USB data interface: To connect the balance to a printer, PC or other peripherals.WIFI data interface: To transfer data from the balance to a printer, PC or other peripherals.Network interface: For connecting the scale to an Ethernet network. With KERN products you can use a universal RS-232/LAN converter.
