66500

Including a free test certificate

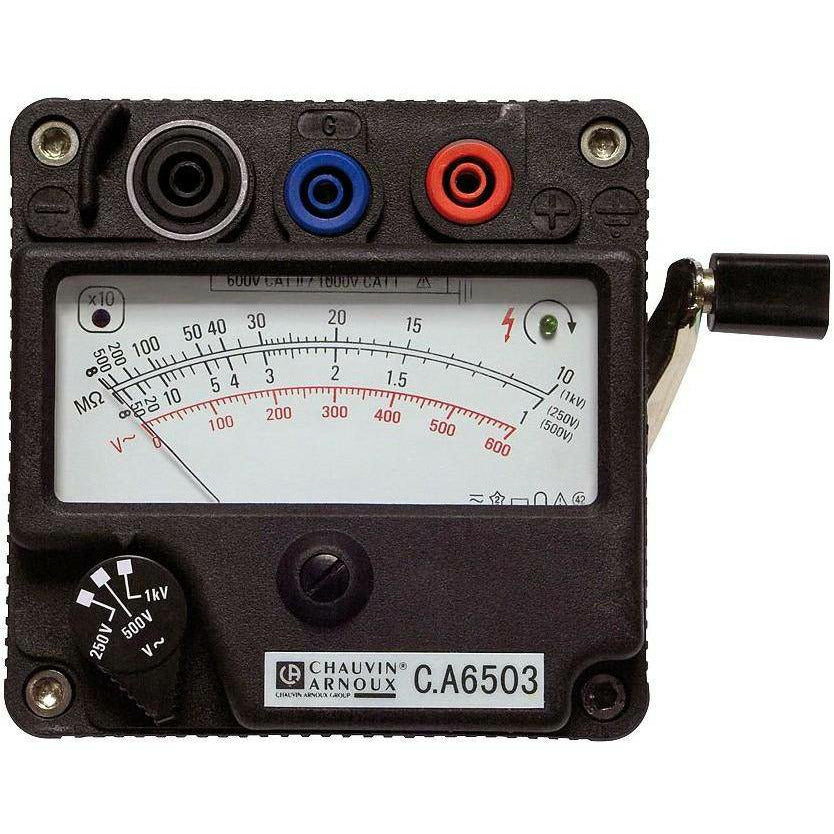

Hand-cranked portable insulation tester

Portable, lightweight and compact, the CA6503 5 GOhm Insulation Tester can be used totally independently because it is powered by a magneto.

This all-terrain tool is ideal for use on industrial and residential sites, electricity distribution networks and telecommunications equipment. It is suitable for a wide range of applications such as ensuring that electrical installations comply with the applicable standards, or carrying out preventive maintenance on cables, motors, circuit-breakers, transformers, etc.

Specifications:

  • Test voltages: 250, 500 and 1,000 V DC
  • Measurement range: 1 to 5,000 Ohm
  • Power supply: magneto
  • Protection: IP52
  • Electrical safety: IEC 61010 300V CAT III
  • Dimensions : 120 x 120 x 130 mm / 1.06 kg

300vcat3

    Chauvin Arnoux CA6503 5 GOhm Insulation Tester
    66500
