Kern ABP analytical balances with capacities from 52 g to 320 g. The Kern ABP analytical balances are a premium product that offer extremely rapid and stable weighing results. The balance is available with an optional calibration certificate and other accessories such as printers, software and communications.

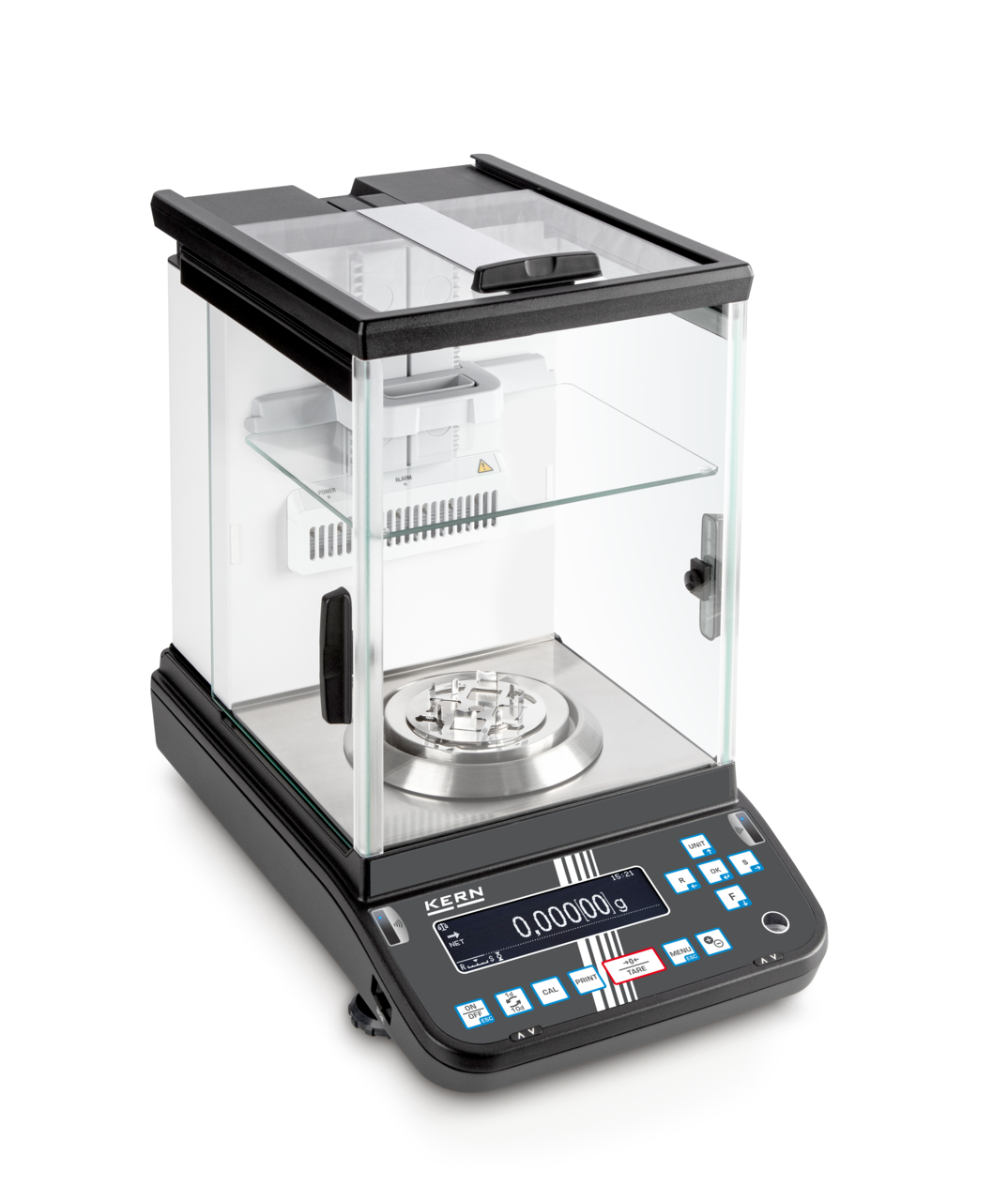

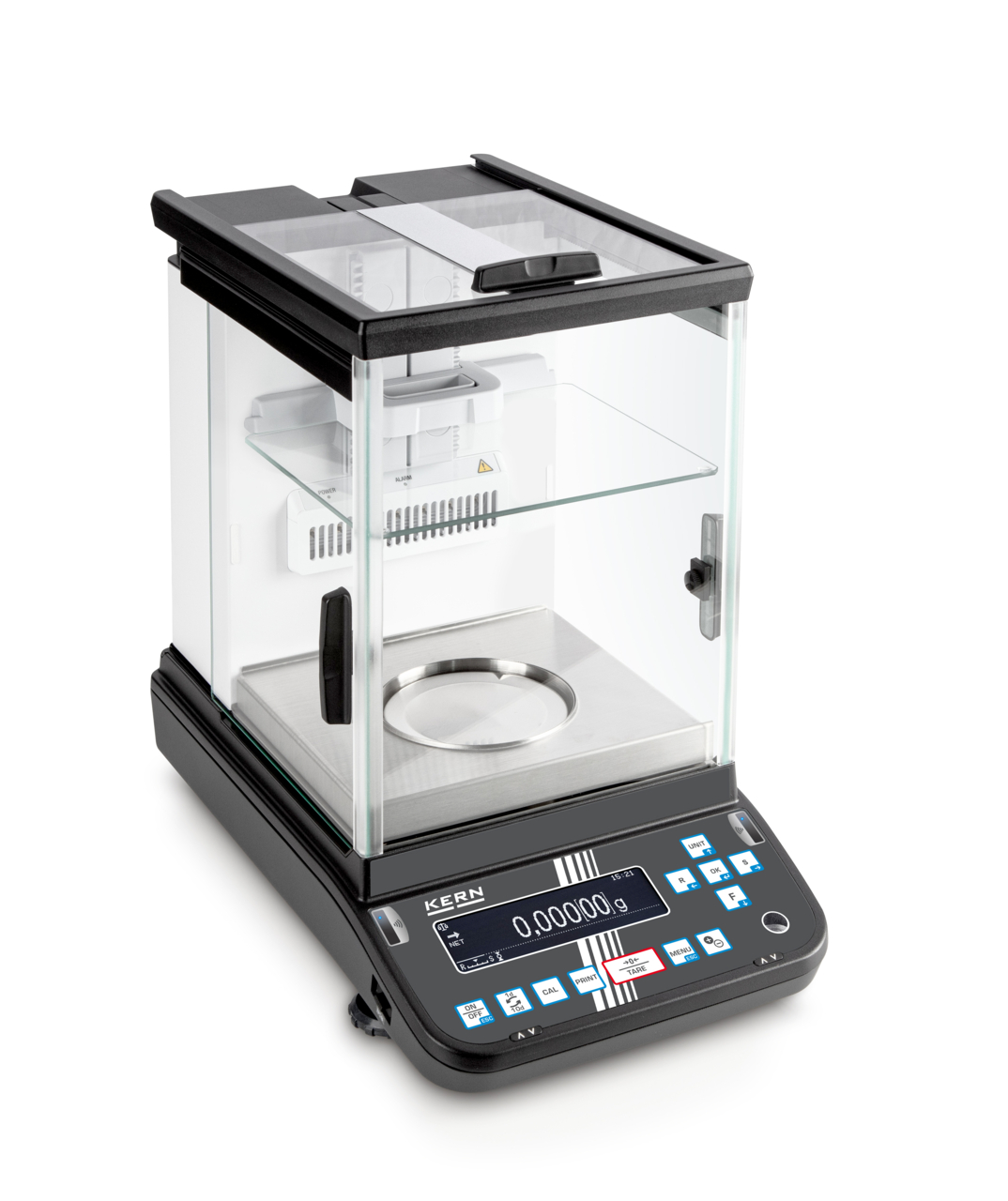

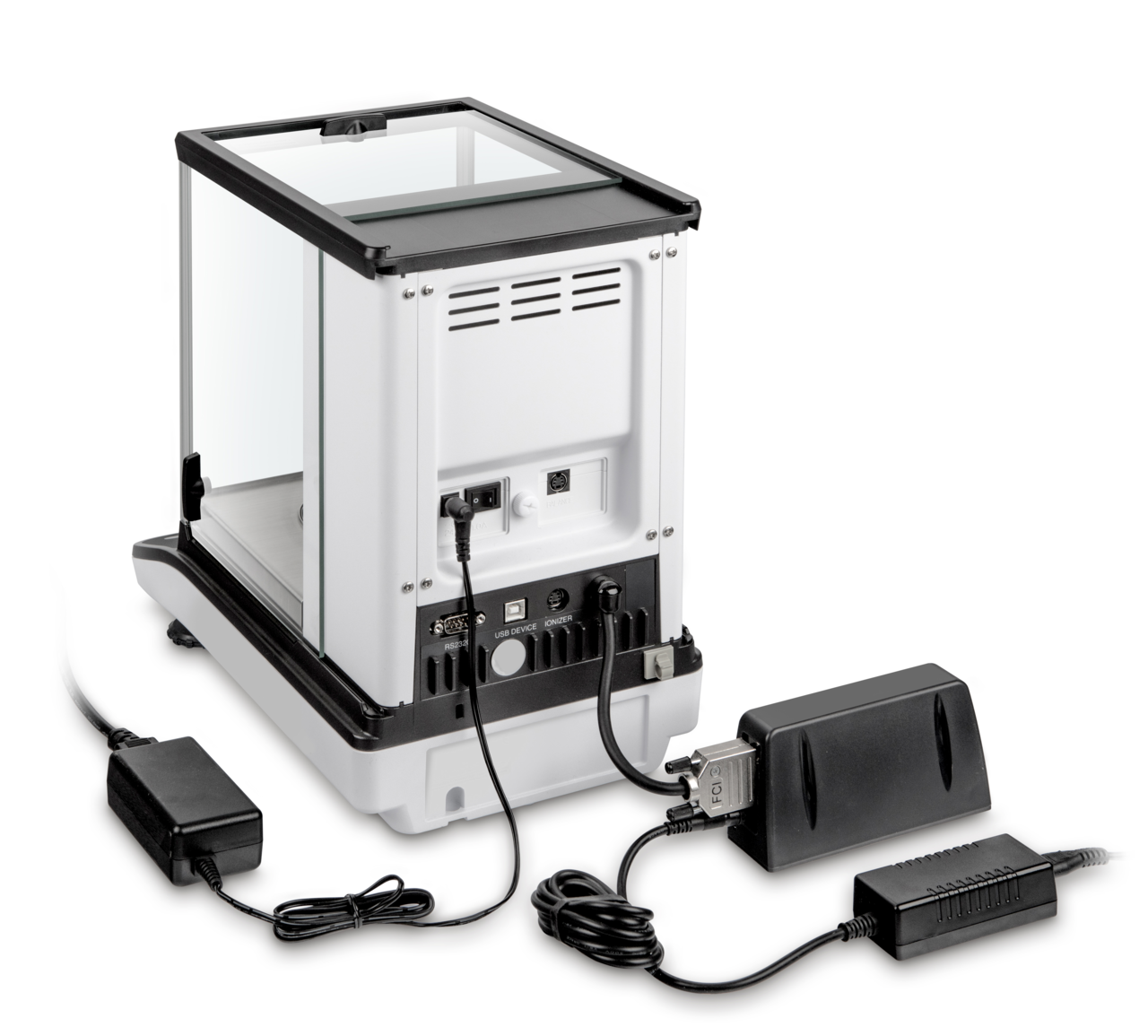

  • Optional - extremely fast ionization process, thanks to the latest generation of KERN ionization technology to neutralise electrostatic charge for fixed installation in the analytical balance. Particularly convenient handling as you no longer need a separate device. Simply enable the ioniser fan at the push of a button. Suitable for all models, see accessories to the right

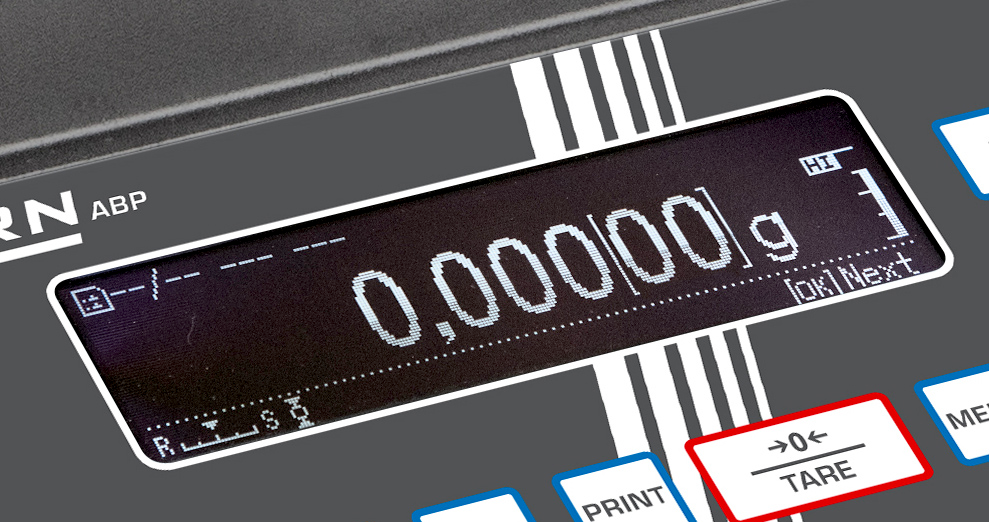

  • Bright OLED display with large viewing angle for the very best readout from a wide range of lines of sight

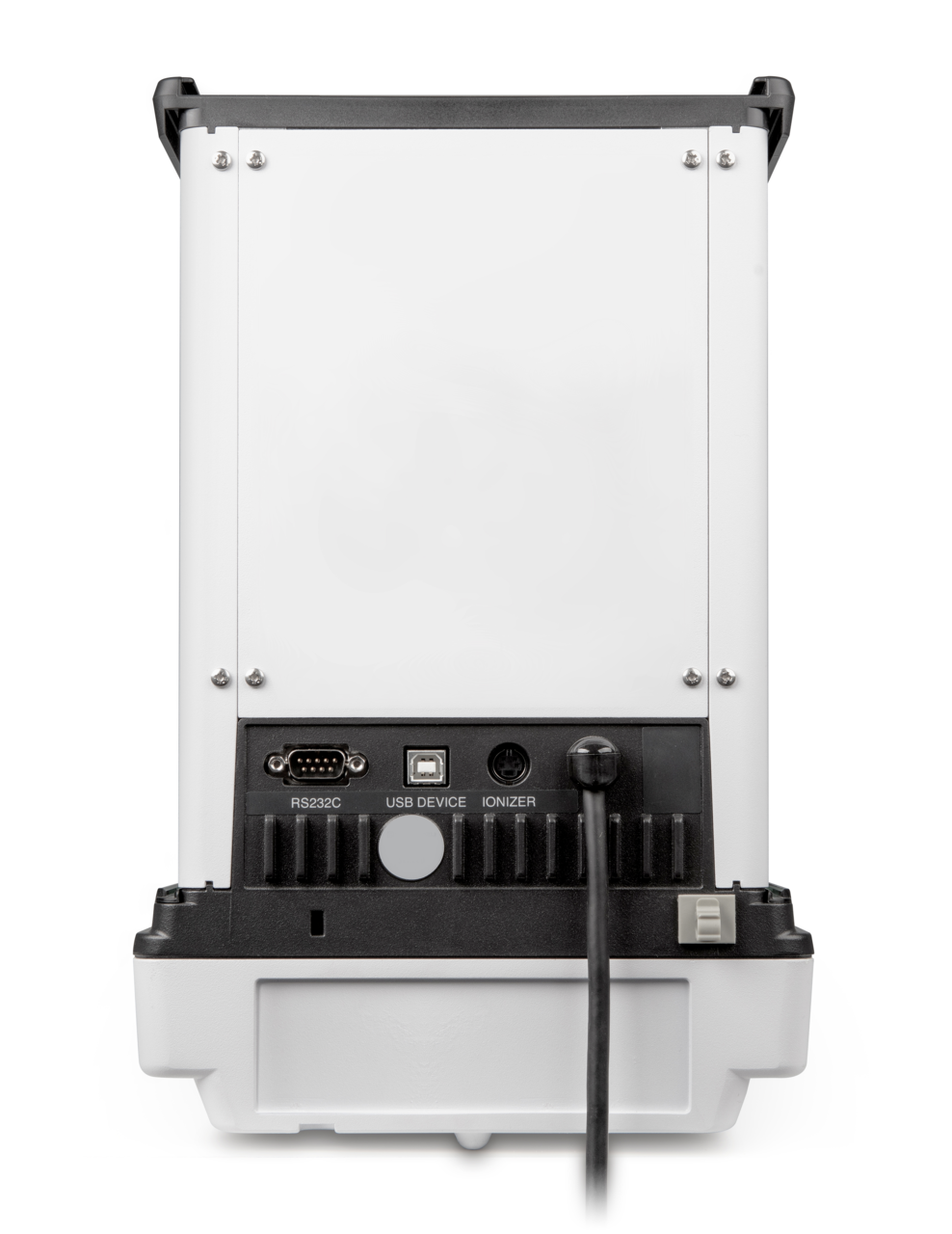

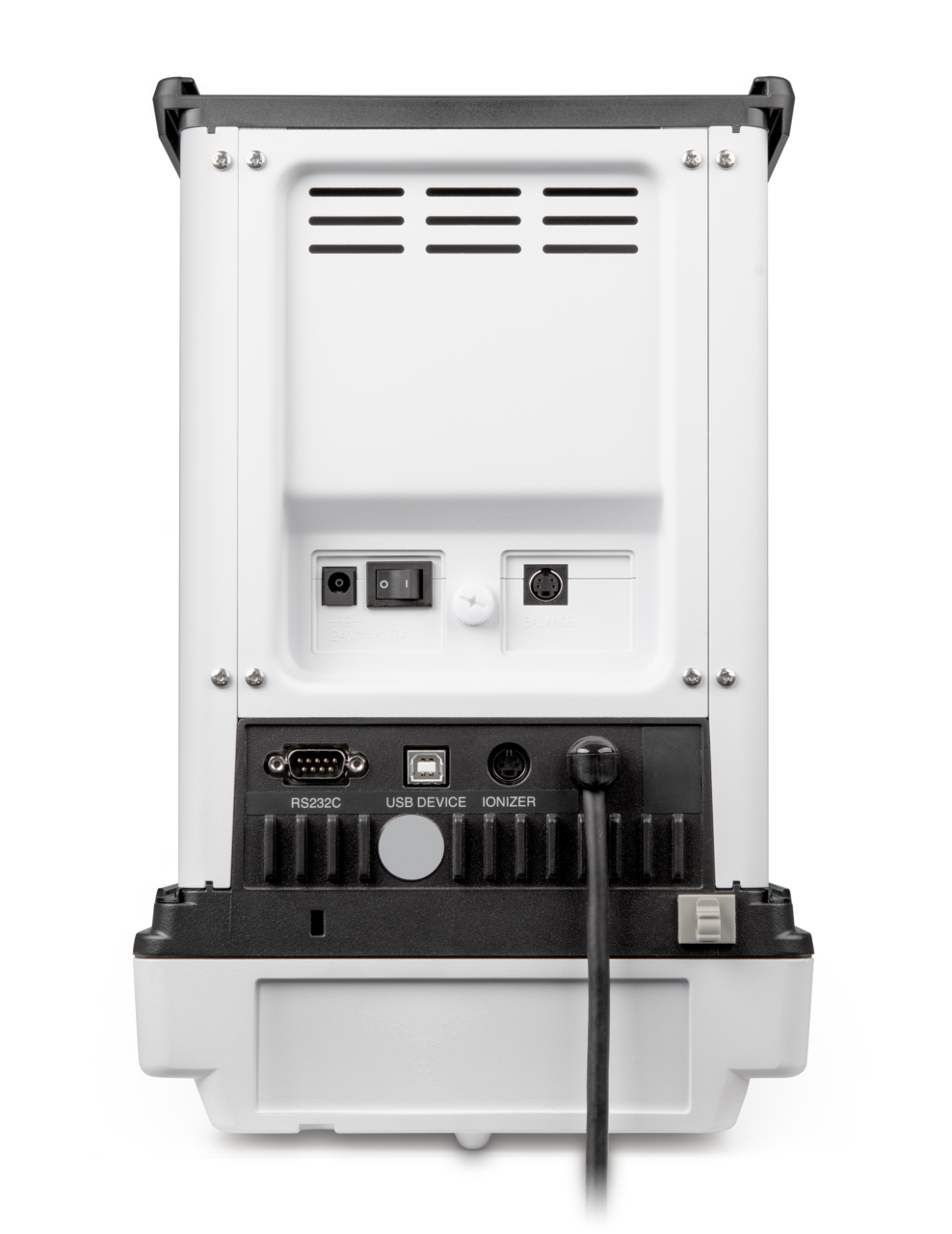

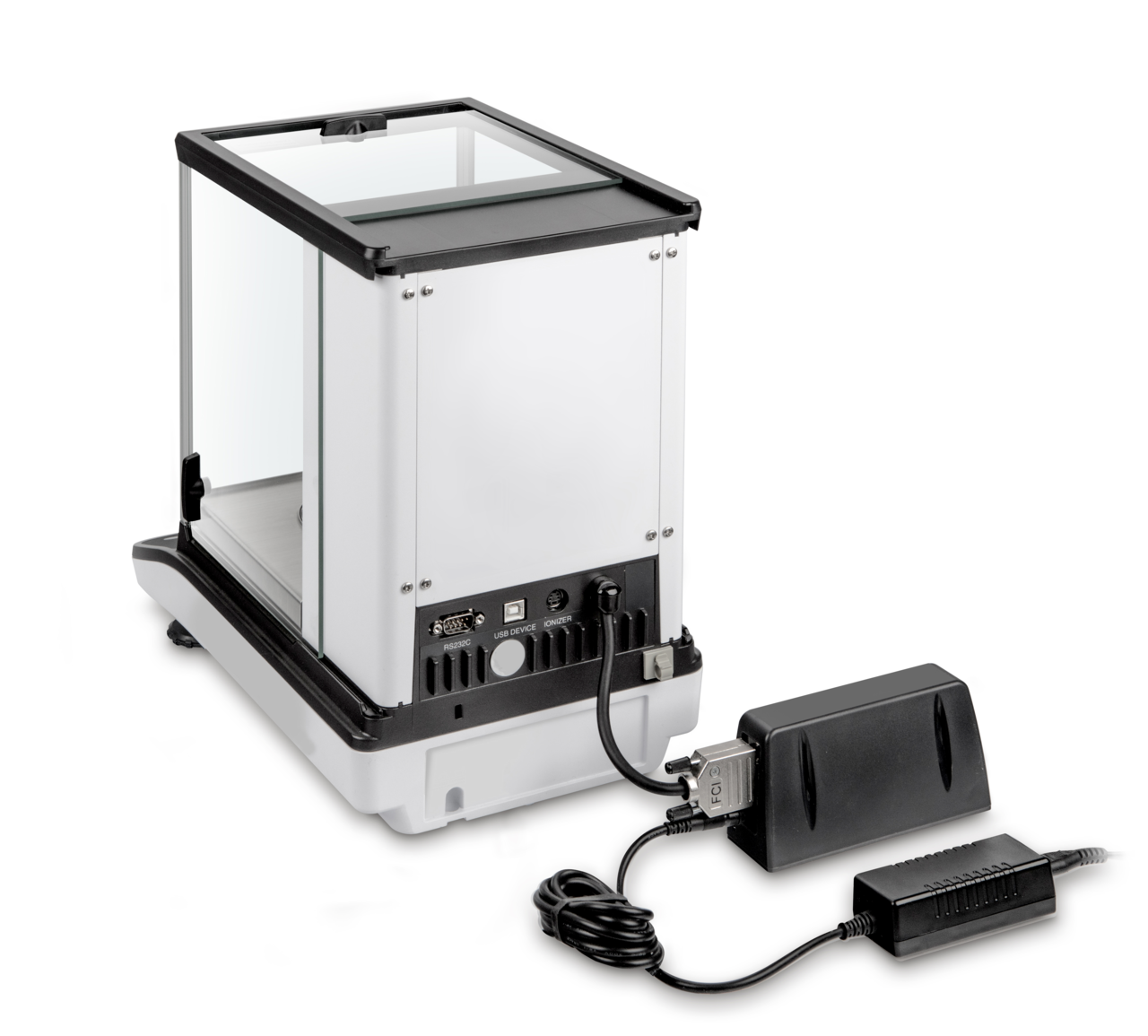

  • RS 232 and USB interfaces for the transfer of weighing data to PCs, tablets, printers as well as for the connection of external devices, such as barcode scanners (option), numeric keypad (option), etc.
  • GLP/ISO record keeping: professional, detailed GLP-Protocol, so that the balance is completely compliant with the relevant standard requirements in accordance with ISO, GLP and GMP
  • This new generation of analytical balances combines the highest level of precision with large weighing ranges. Thanks to the new Single-Cell Generation, the weighing result is displayed in a fraction of the time with comparable models. Together with the intuitively structured menu, this means that you can work efficiently and rapidly
  • Navigation pad for super quick navigating through the menus
  • Automatic internal adjustment in the case of a change in temperature > 1 °C and time-controlled every 4 hours, guarantees high degree of accuracy and makes the balance independent of its location of use
  • The Minimum weight of sample can be manually stored in the device or automatically calculated. For weighing below this value, the balance issues a warning message
  • Dosage aid: High-stability mode and other filter settings can be selected
  • Simple recipe weighing and documenting with a combined tare/print function. In addition, the mixing ingredients for the recipe are numbered automatically and printed out with their corresponding number and weight value
  • Individual user settings for up to 10 users can be saved: user name/user number (can be printed out or added to the record for each process), password, menu language, user profiles, accessing user settings via barcode, additional guest mode for users who are not logged in eg. balance adjustment, changing, settings or conditioning or modification of a recipe only by the authorized person & performing the formulation by the user
  • U.S. FDA 21 Part 11: assists you in data integrity in accordance with U.S. FDA 21 Part 11 (for example weighing result, sample ID, user name, scales ID, ...)
    Menu language DE, GB
  • Automatic data output to the PC/printer each time the balance is steady

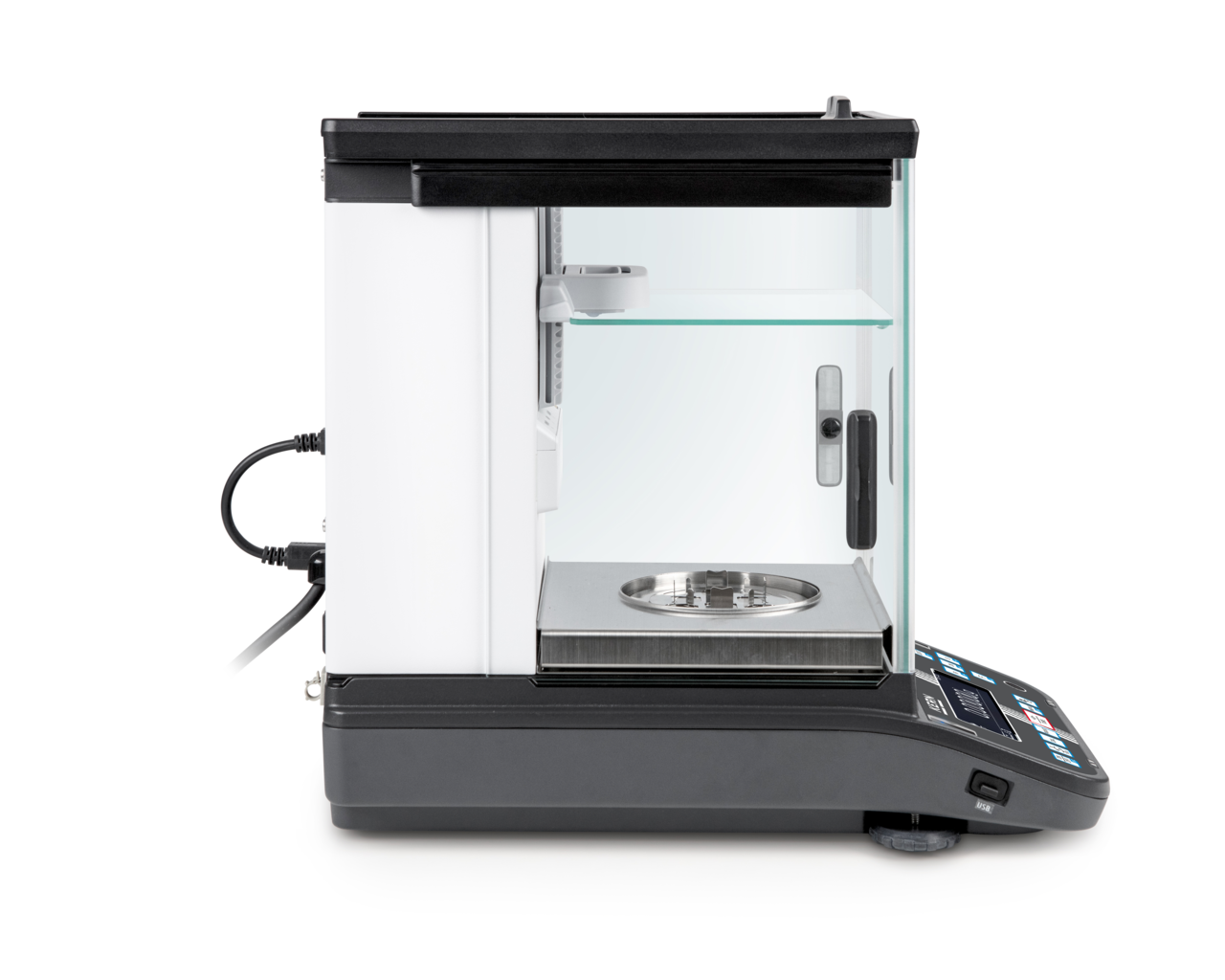

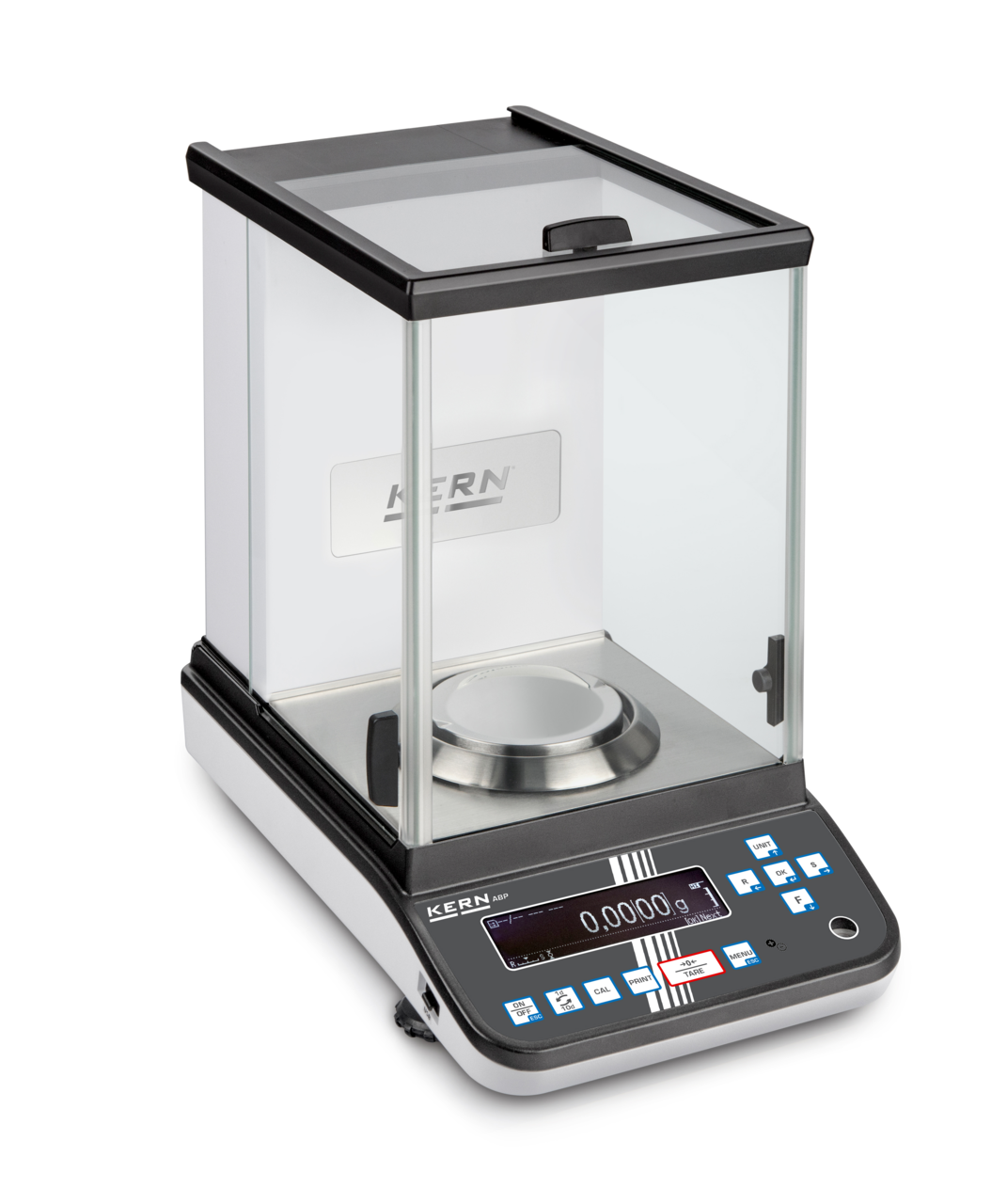

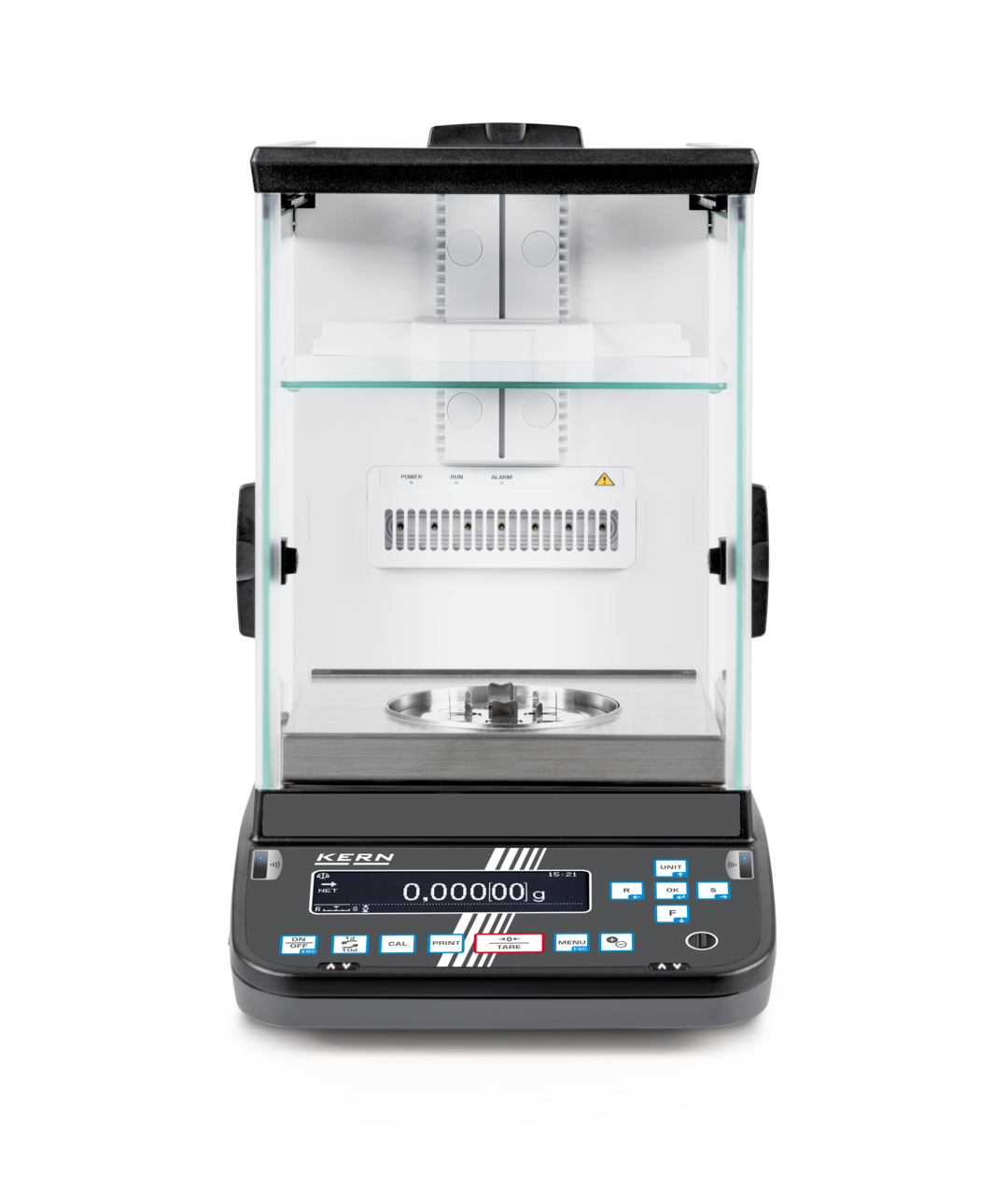

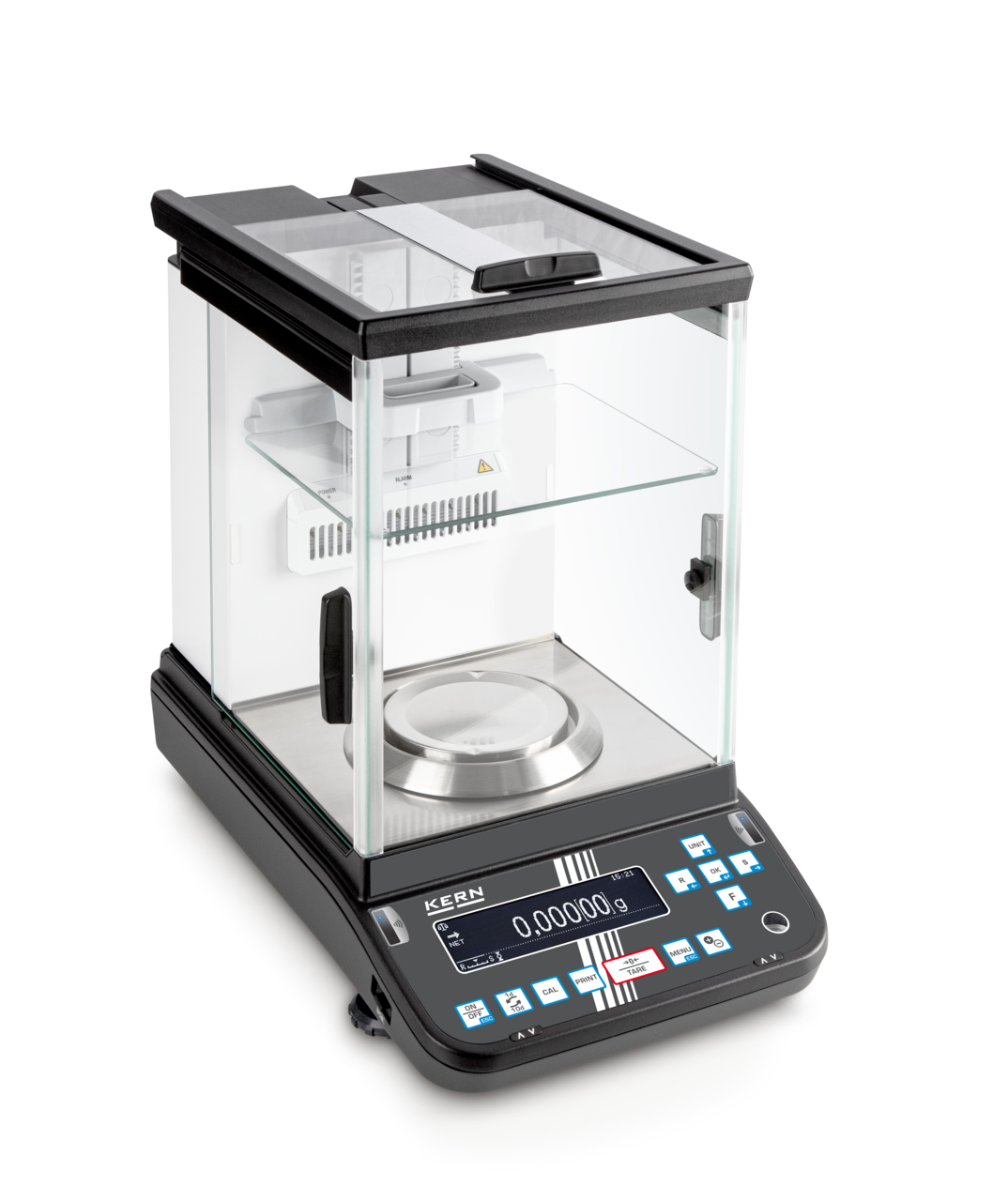

  • Large glass draught shield with 3 sliding doors for easy access to the items being weighed
  • Multi-function weighing plate included with delivery, minimises the effect of currents of air in the weighing chamber and therefore significantly improves the stabilisation time and repeatability. In addition samples, sample paper, PCR containers, micro centrifuge tubes and many other items which protrude can be easily fixed in place and weighed easily
  • Protective working cover included with delivery
  • Single-cell advanced technology
  • Fully automatic manufactured weighing cell from one piece of material
  • Stable temperature behaviour
  • Short stabilisation time: Steady weight values within approx. 2 sec (Models with [d] = 0,1 mg), approx. 8 sec (Models with [d] = 0,01 mg) under laboratory conditions
  • Shock proof construction
  • High corner load performance
Model Weighing capacity
[Max]
Readability
[d]
Weighing plate
mm
(WxD | OD)
ABP 100-4M 120 g 0,0001 g 91 mm
ABP 100-5DM 52 g; 120 g 0,00001 g; 0,0001 g 91 mm
ABP 200-4M 220 g 0,0001 g 91 mm
ABP 200-5DM 102 g; 220 g 0,00001 g; 0,0001 g 91 mm
ABP 300-4M 320 g 0,0001 g 91 mm

    Standard

    Internal adjusting (CAL): Quick setting of the balance's accuracy with internal adjusting weight (motordriven).Data interface RS-232: To connect the balance to a printer, PC or networkUSB data interface: To connect the balance to a printer, PC or other peripherals.GLP/ISO log: the balance displays the weight, date and time, regardless of printer connectedPiece counting: Reference quantities selectable. Display can be switched from piece to weight.Recipe level B: Internal memory for complete recipes with name and target value of the recipe ingredients. User guidance through displays.Percentage determination: Displays the deviation from the reference weight (100%) in % instead of grams.Weighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model.Vibration-free weighing: (Animal weighing program) Vibrations are filtered out so that a stable weight is obtained.Suspended weighing: load support with hook on the underside of the balance.Universal mains adapter: with universal input and optional input socket adapters for EU, GB, USASingle cell technology: Advanced version of the classic electromagnetic force compensation principle.
The load cells are milled from a single aluminium block achieving high mechanical stre

    Optional

    Verification possible. The time required for verification is specified in the pictogram.
