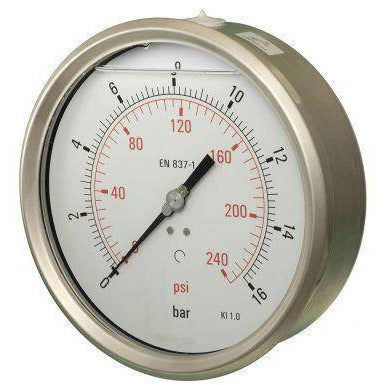

160mm bottom entry glycerine filled pressure gauge is suitable for heavy duty hydraulic and pneumatic applications. Available in ranges from -1 bar to 1000 bar (15000) psi. The 160mm bottom entry glycerine filled pressure gauge is available with a 1/2" BSP thread as standard and an optional calibration certificate.

Click here to add a connection adapter

Case: 304 Stainless steel
Bezel: Removable bayonet stainless steel
Window: Safety glass
Connection: Brass
Sensitive Element: Brass
Movement: Brass
Joints: Soldered silver alloy
Pointer: Black aluminium
Dial: Stoved enamel on aluminium
Accuracy: Class 1.0
Scale: Dual psi (outer) + bar (inner)
Fill: Bi-distilled glycerine
