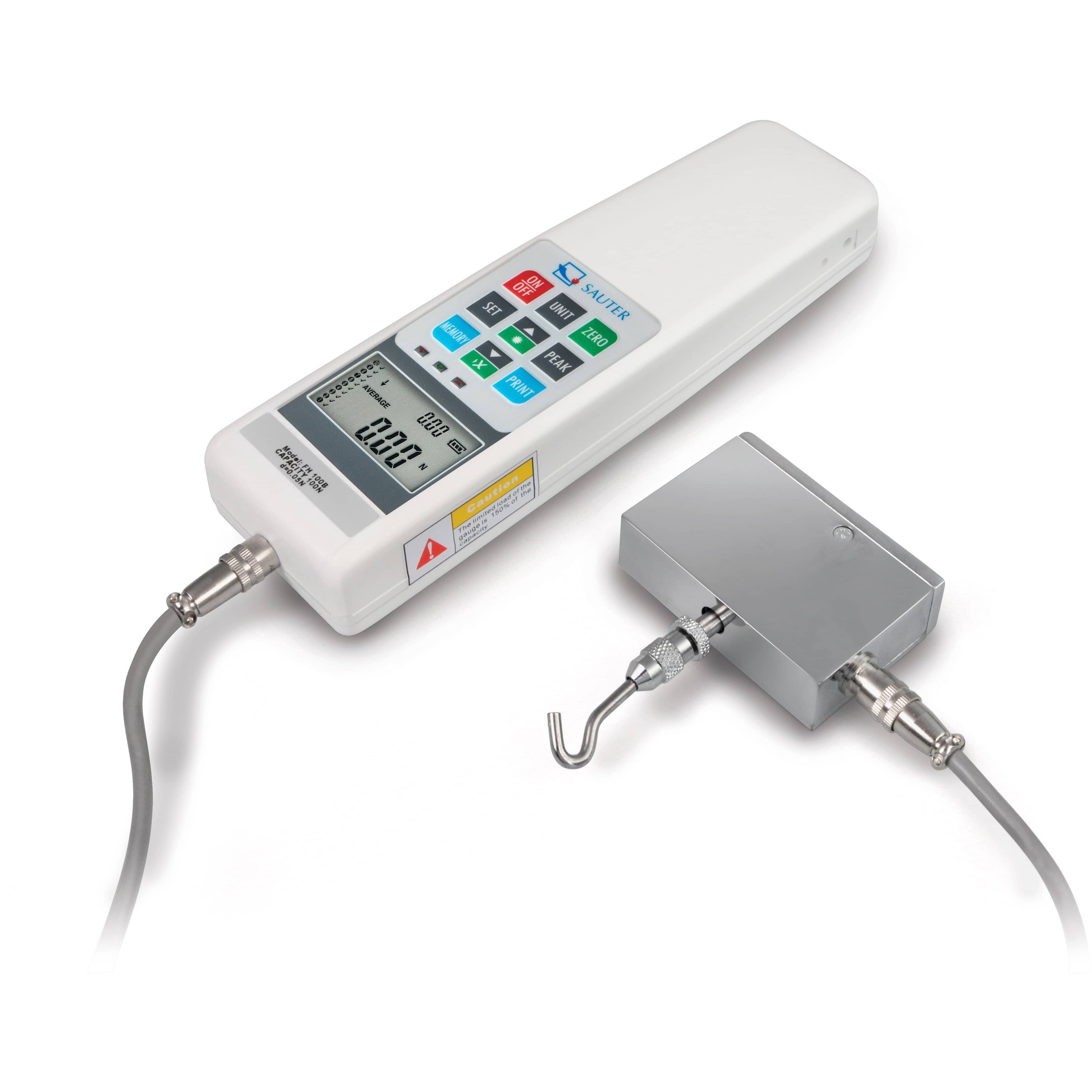

Sauter FH-EXT force gauge, with capacities from 50 kg to 1000 kg. The Sauter FH-EXT force gauge, is a digital force-measurement device with external, high-resolution load cell for small loads. It is available with an optional calibration certificate and other accessories.

• Force-measuring device combination consisting of an external measurement sensor and a high-resolution display unit
• Ideal for force measurement of very slight forces or loads in machines and plants
• Real time or Peak Hold Mode to observe transients or capture peaks
• Push & Pull function to capture tensile and compressive forces
• Mini Statistics Kit: calculates the average result from up to ten stored single results, min., max., n
• Function to set limits: Input of an upper/lower limit value. A visual and acoustic signal supports the measuring operation
• Rechargeable battery pack internal, battery charger included
• Depending on the display unit, only one measuring cell can be connected
• Suitable for all Sauter test stands

Technical data

• External sensor: Dimensions LxWxH 76×65×22 mm, net weight approx. 0,3 kg (without sensor)
• Cable length for display unit approx. 2 m
• Tolerance 1 % of [Max]
• Selectable measuring units: N, kg, lb
• Overload protection: 150 % of [Max]
