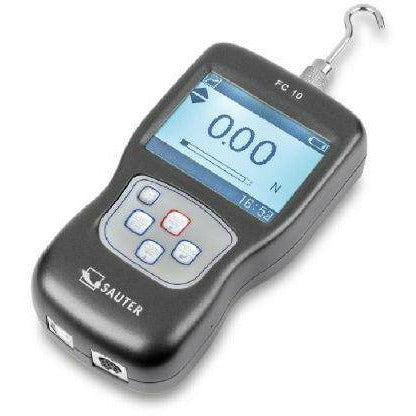

Sauter FC force gauge, with capacities from 600 kg to 10000 kg. The Sauter FC force gauge, is a compact digital force gauge suitable for many applications. It is available with an optional calibration certificate and other accessories.

• Turnable display with backlight
• Real time or Peak Hold Mode to observe transients or capture peaks
• Metal housing for durable usage in harsh environmental conditions
• Capacity display: A bar lights up to show how much of the measuring range is still available
• Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed between 10 and 100 % of [Max], in pull and push direction. The process is supported by an acoustic and visual signal
• Safety: If loads exceed 110 % of the measuring range, the device will give clear acoustic and visual signals
• Internal memory for up to 1000 measurements
• USB data interfaces as standard
• Data interface RS-232 (only for connection to the printer)
• Selectable: AUTO-OFF function or permanent operation

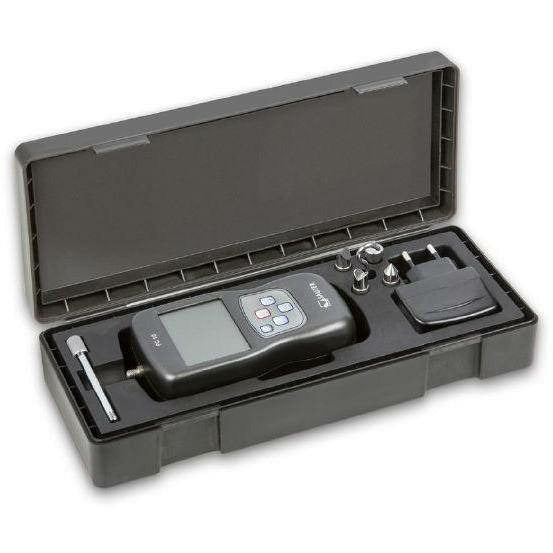

• Delivered in a hard carrying case
• Selectable measuring units: N, kg, oz, lb

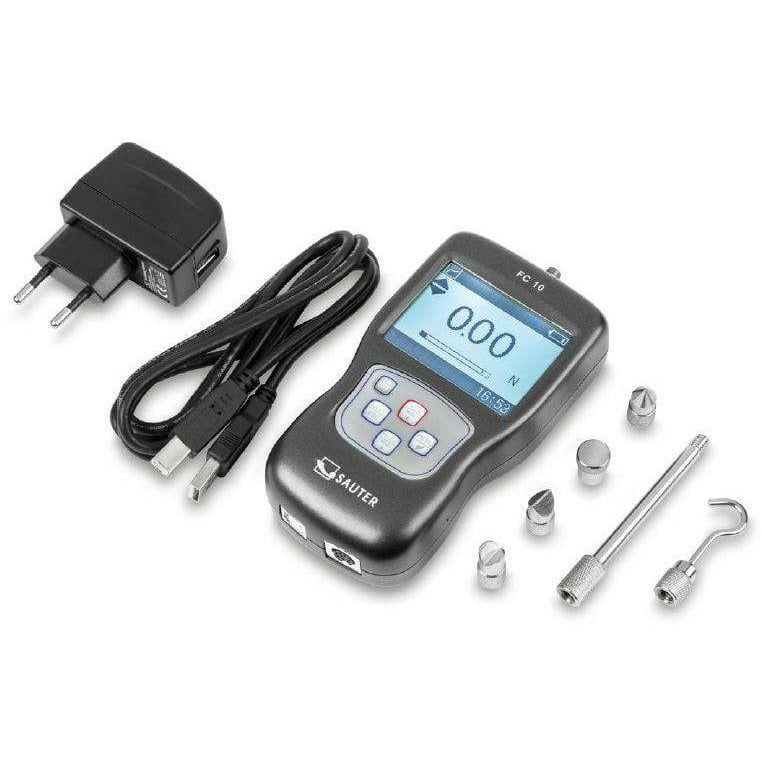

• Standard attachments: as shown below, extension rod: 90 mm
• Can be mounted on all Sauter test stands (with adapter plate)

Click here for accessories

Standard

Optional
