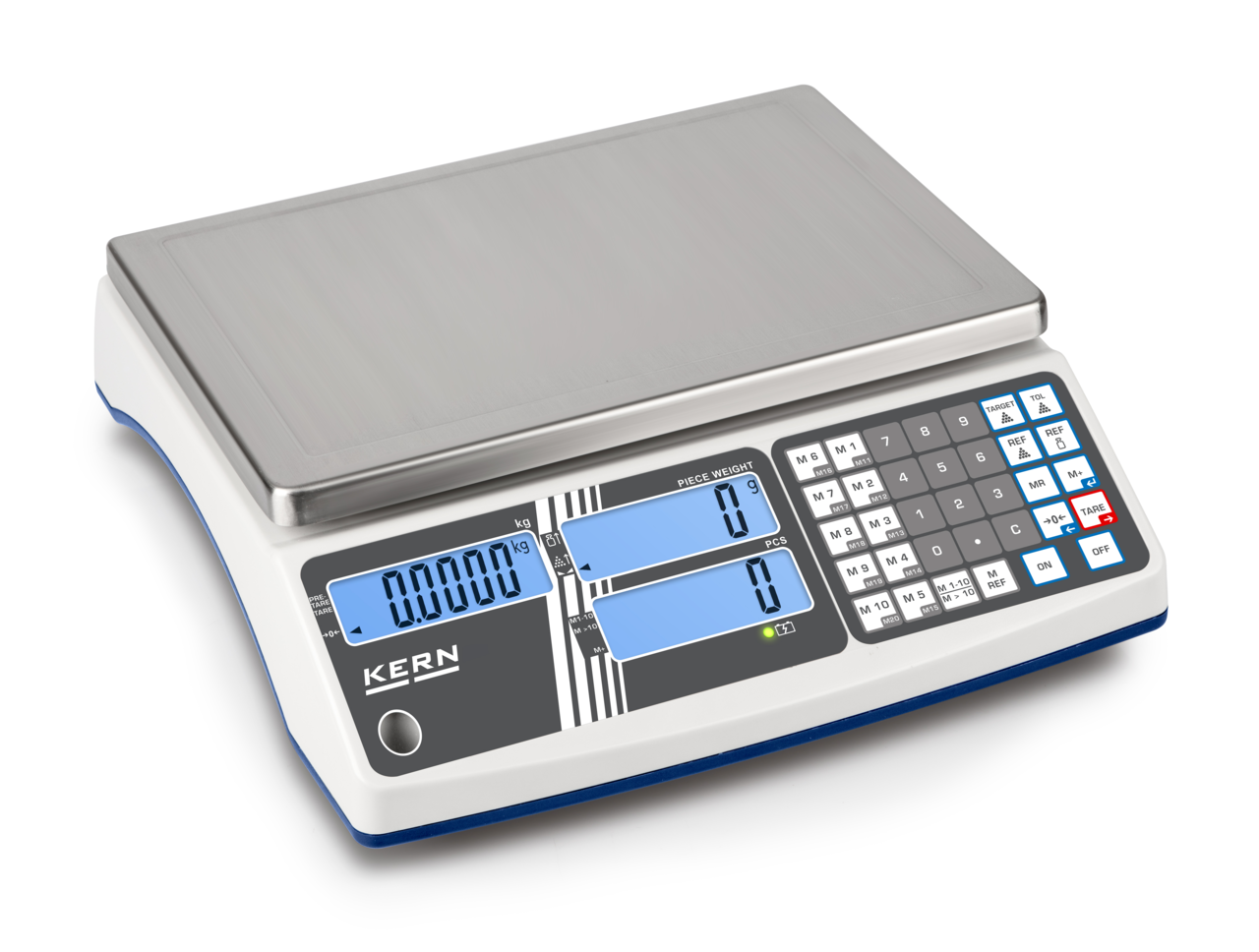

Kern CIB counting scales with capacities from 3 kg to 30 kg. Kern CIB counting scales is a heavy duty counting scale with a checkweighing display and a large internal memory. They are available with an optional calibration certificate and other accessories such as printers, software and communications.

The counting process can be supported visually and/or audibly and this therefore makes portion division, dispensing and grading easier

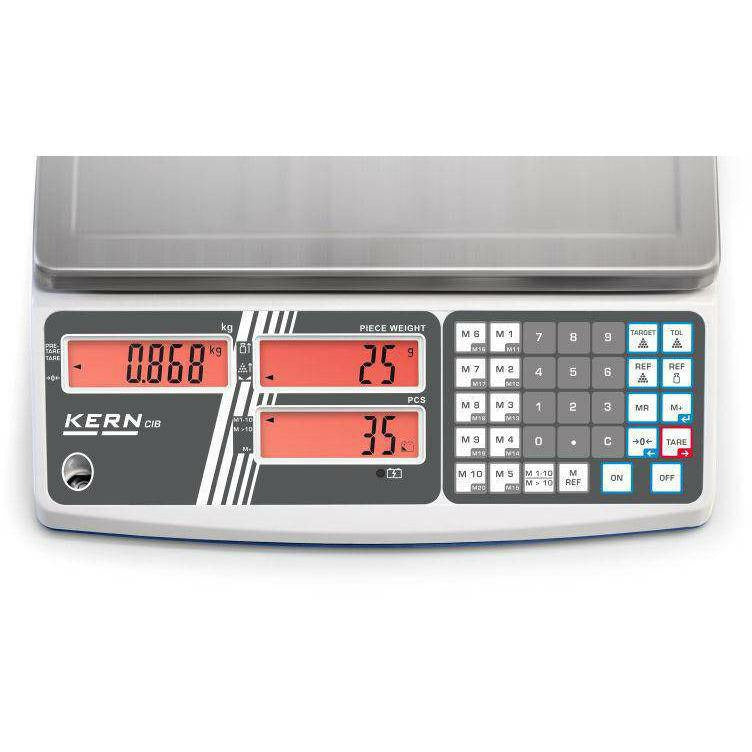

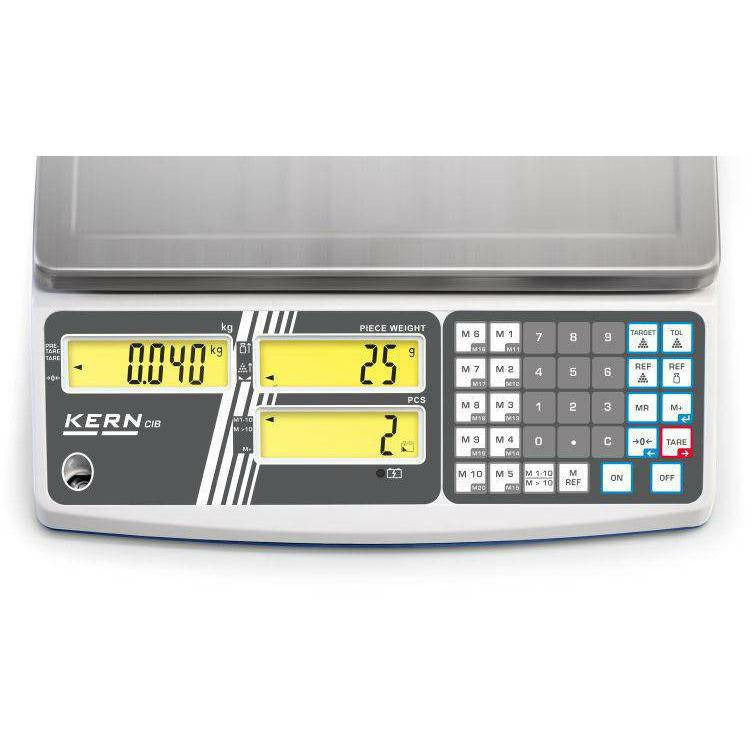

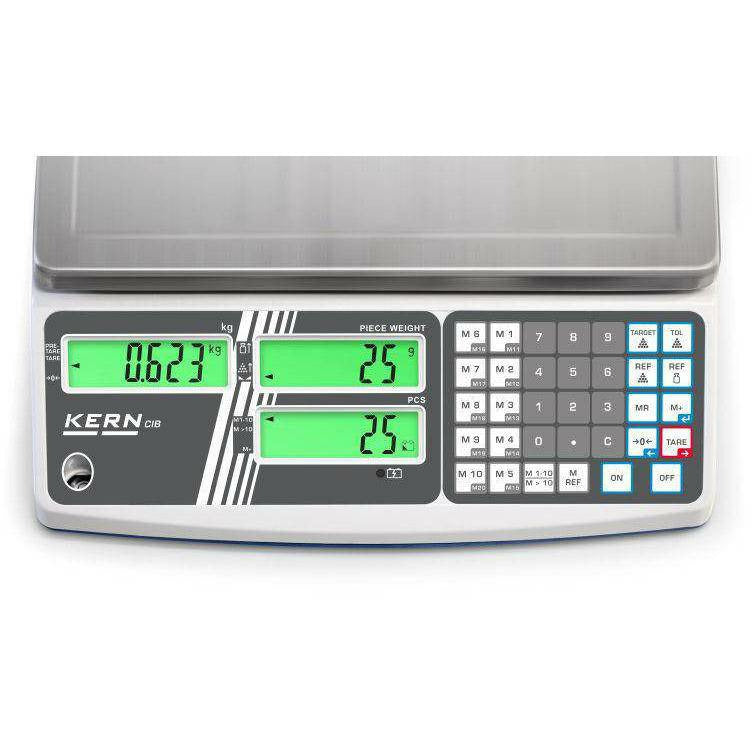

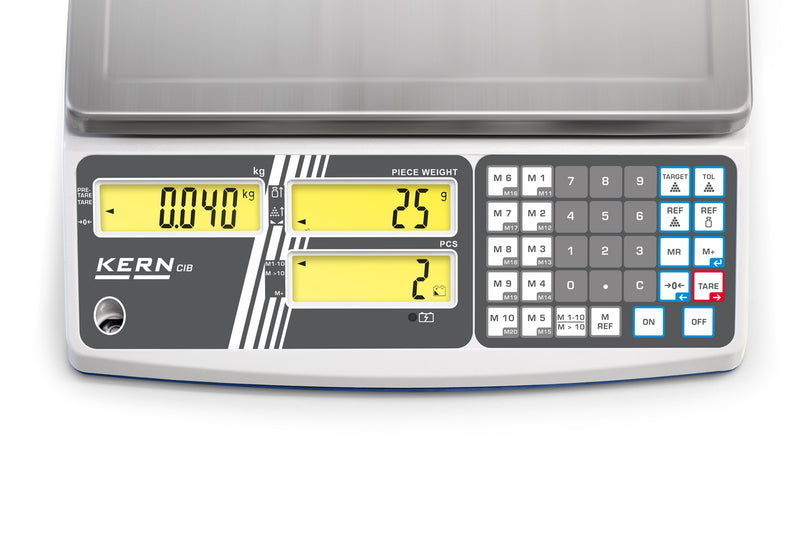

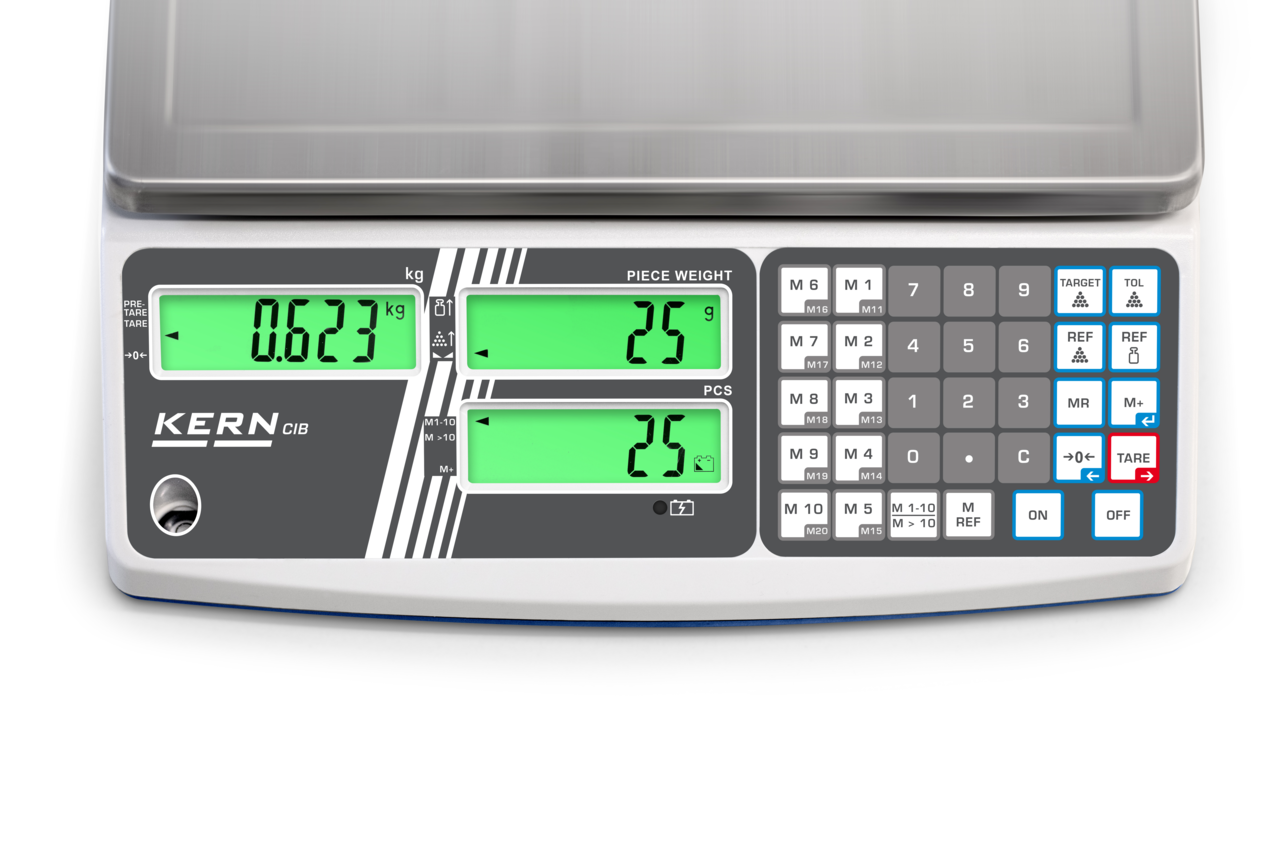

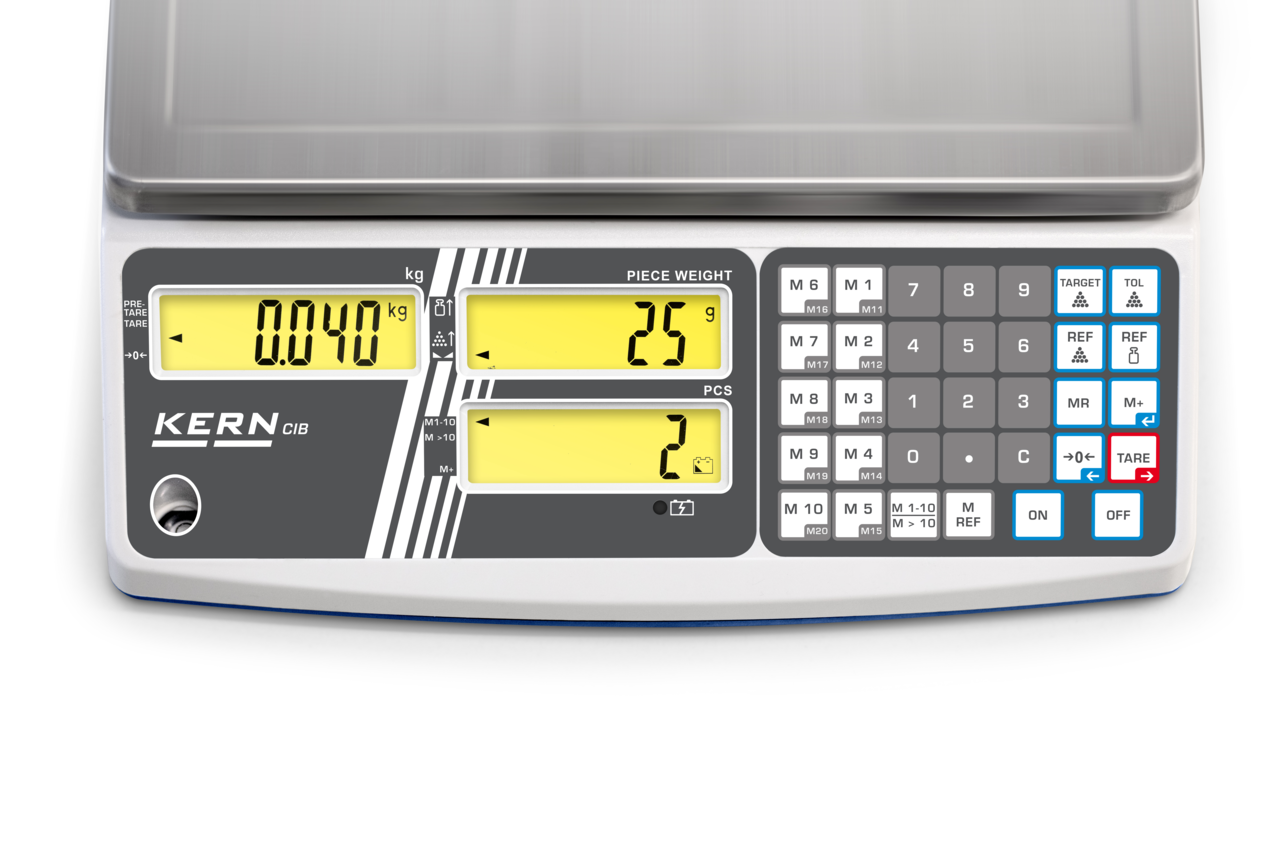

  • Visual signal: the colour of the display changes depending on the counting result (not enough/ok/too much)
  • Audible signal: the frequency of the audible signal changes depending on the counting result (not enough/ok/too much)Ideal for workshops for people with disabilities, particularly loud or quiet environments, where operators change frequently, etc.

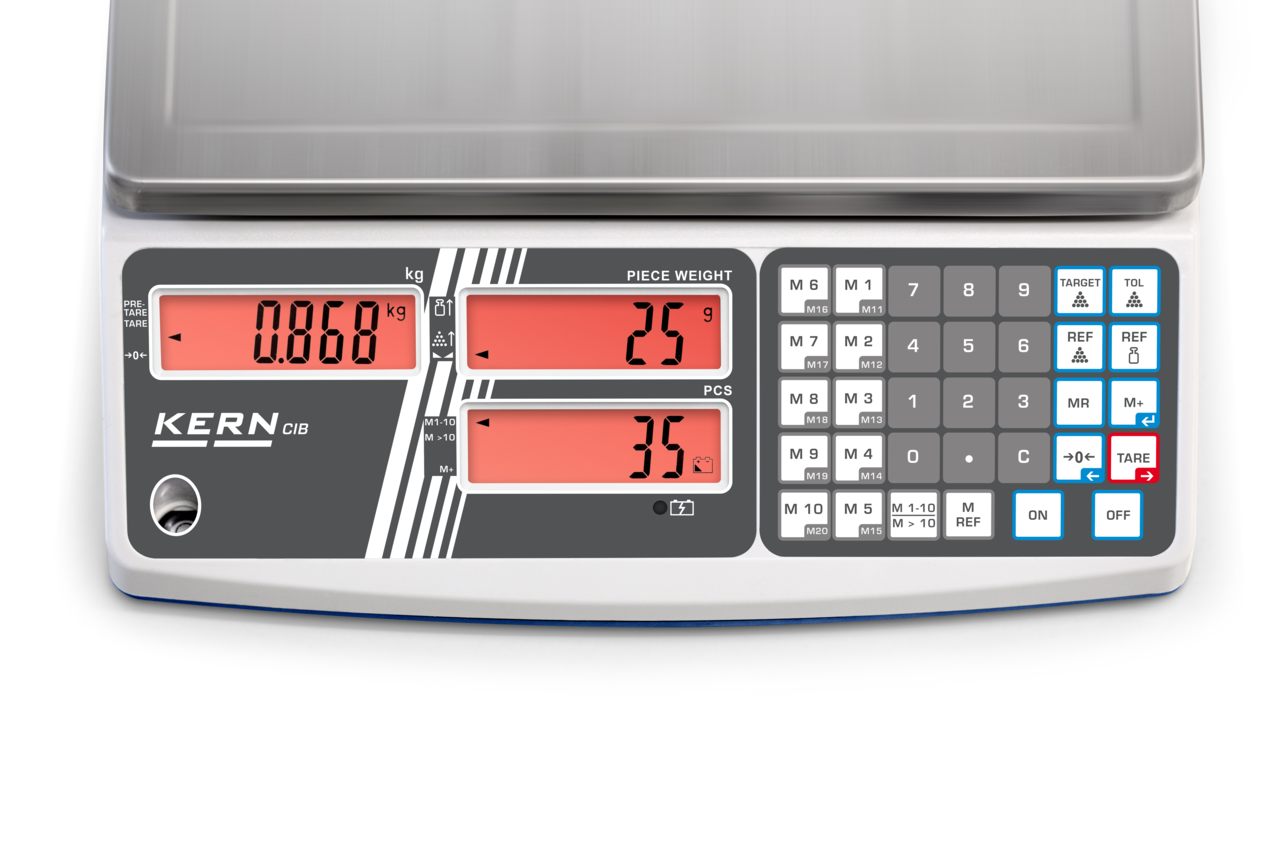

  • Three displays for total weight, piece weight, total quantity
  • Precise counting: The automatic reference weight optimisation of reference weight gradually improves the average piece weight value
  • Programmable using numerical key pad which can store the required reference quantity and the known reference weight
  • Counting results memory: adds up all individual piece counts, result is shown in total weight and total pieces
  • PRE-TARE function for manual subtraction of a known container weight, useful for checking fill-levels
  • 20 freely assignable direct keys for frequently recurring reference weights and PRE tare values
  • Memory (PLU) for 50 reference weights and PRE-Tare values
  • High mobility: thanks to battery operation, compact, lightweight construction, it is suitable for the use in several locations
  • Two scales in one: Switching from counting mode to weighing mode at the touch of a key
  • Energy management: Backlight turns off after 5 sec, (can be switched off)
  • Protective working cover included with delivery

Technical data
  • Large backlit LCD displays, digit height 18 cm
  • Dimensions weighing surface WxD 315×215 mm
  • Permissible ambient temperature -10 °C/40 °C

 Click here for accessories

Model Weighing capacity Readability Weighing plate
[Max] [d] mm
(WxD | Dia)
CIB 10K-3 15 kg 1 g 315×215 mm
CIB 30K-3 30 kg 2 g 315×215 mm
CIB 3K-4 3 kg 0,2 g 315×215 mm
CIB 6K-4 6 kg 0,5 g 315×215 mm



Standard

Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.Piece counting: Reference quantities selectable. Display can be switched from piece to weight.Totalising level A: The weights of similar items can be added together and the total can be printed out.Weighing with tolerance range: Upper and lower limiting can be programmed individually, e. g. sorting and portioning.Rechargeable battery pack: rechargeable setUniversal mains adapter: with universal input and optional input socket adapters for EU, GBStrain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing
