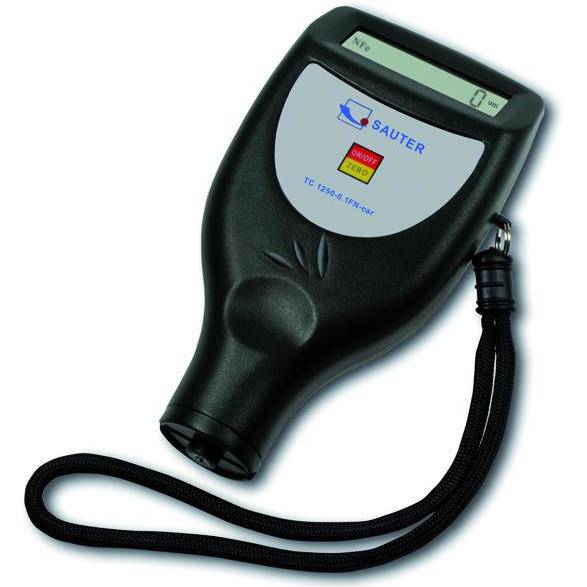

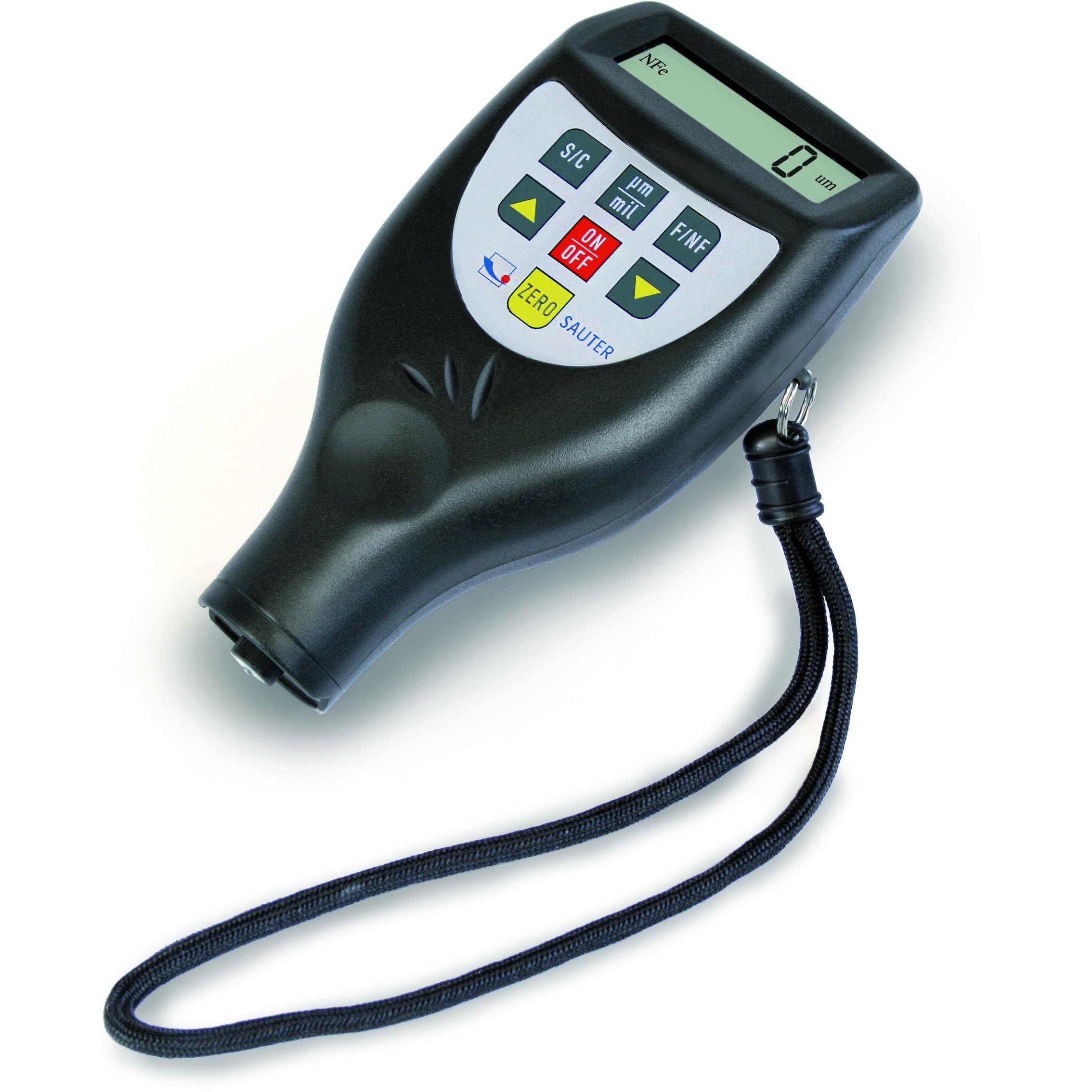

Sauter TC Coating Thickness Meter available in measuring ranges up to 1250 µm and divisions as low as 0.1 µm The Sauter TC Coating Thickness Meter is a a compact thickness gauge for everyday use. The CAR models have been designed especially for the automotive industry. It is available with an optional calibration certificate and is supplied with a base plate and measuring foils.

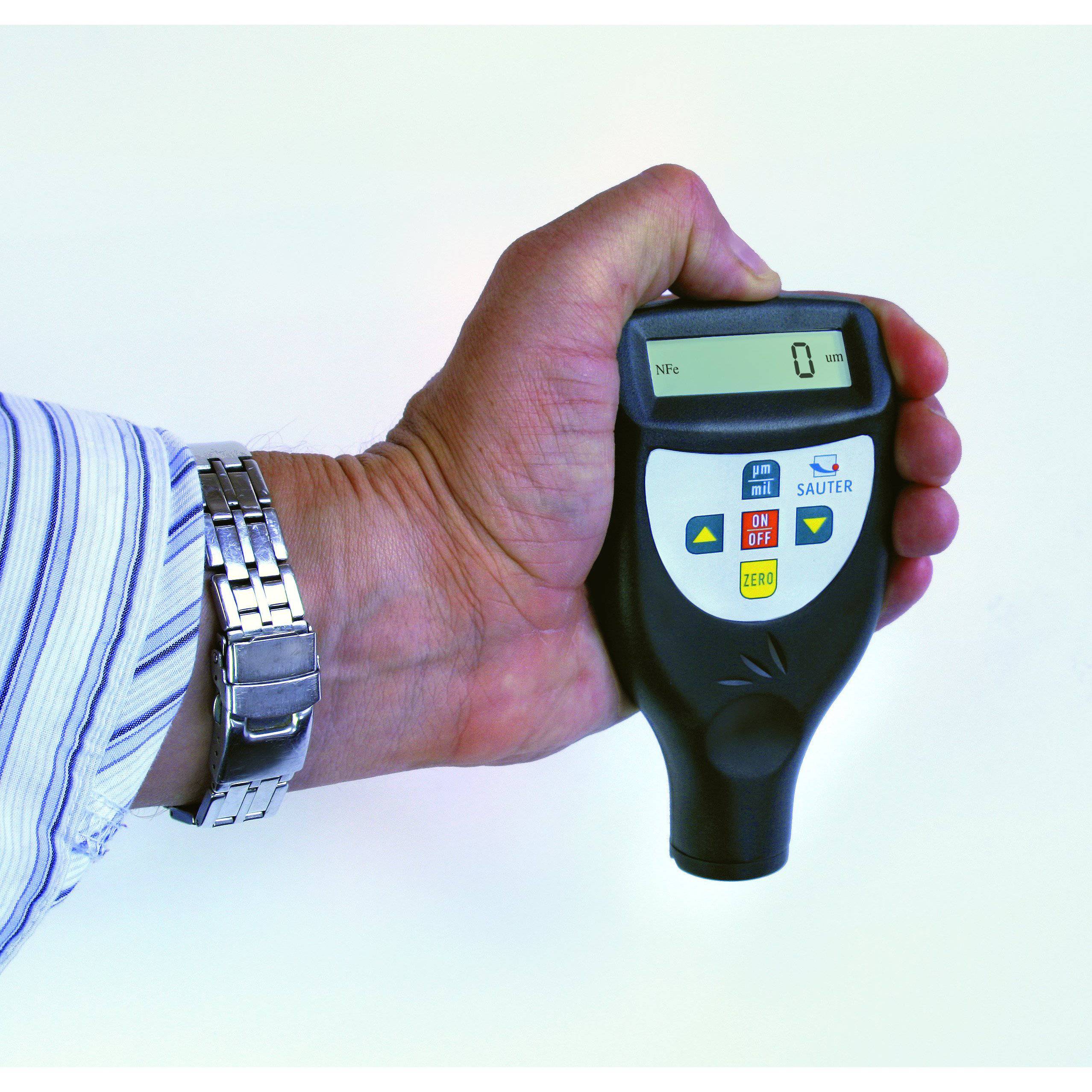

  • Ergonomic design for easy handling
  • Data interface RS-232, included
  • Base plate and calibration foils included

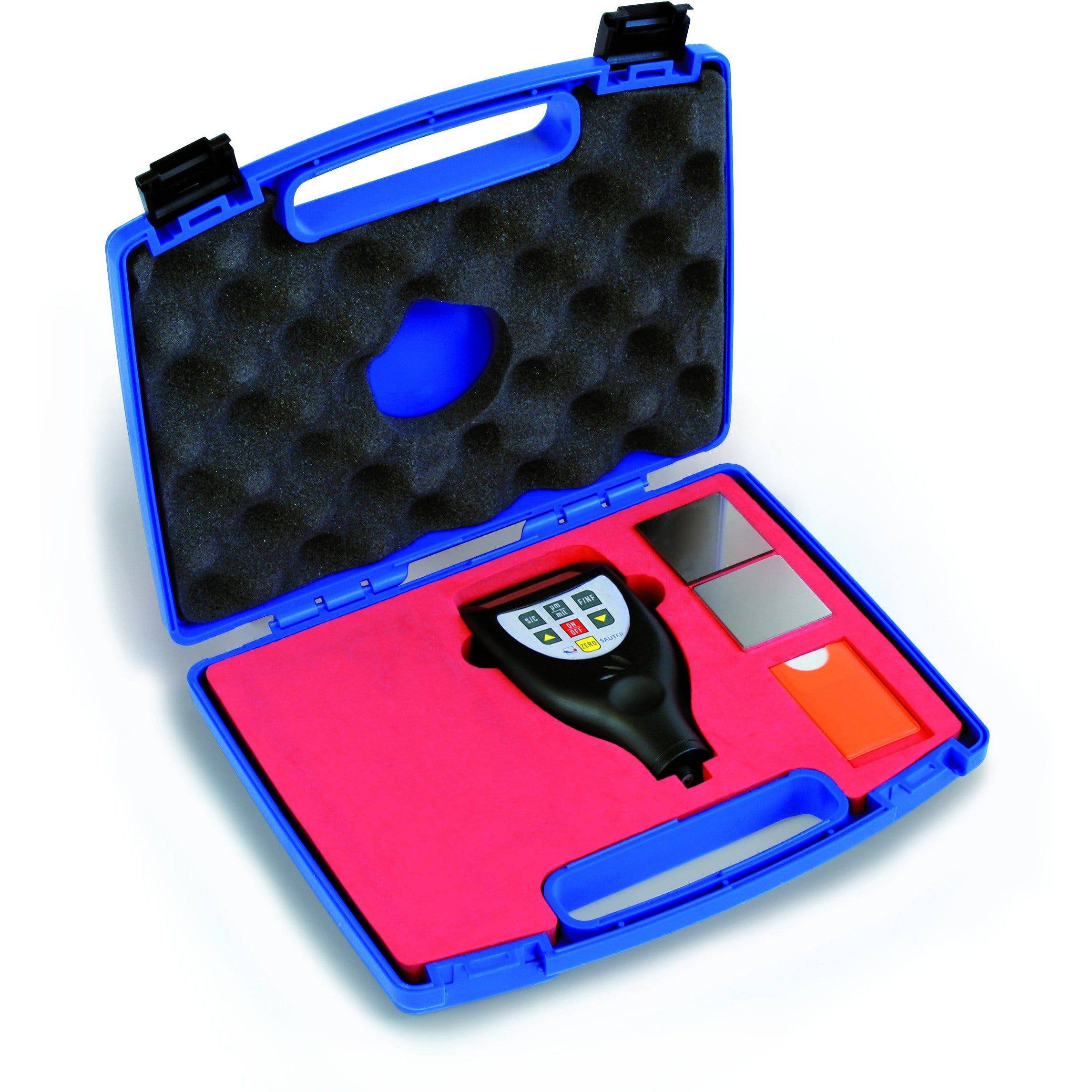

  • Delivered in a hard carrying case
  • Offset-Accur: This function allows you to adjust the instrument precisely on the locally measured range by a two-point calibration. This results in a superior accuracy of approx. 1 % of the measured value
  • Selectable measuring units: µm, inch (mil)
  • SAUTER TC 1250-0.1FN-CAR.:
  • Specifically designed for the automobile industry
  • Automatic recognition of measuring mode (F or N): "point and shoot"
  • Simple and convenient 1-key operation

Click here for accessories

Model Measuring capacity Readability Test Object
[Max] µm [d] µm
TC 1250-0.1F 100 | 1250 0,1 | 1 Ferrous
TC 1250-0.1N 100 | 1250 0,1 | 1 Non-ferrous
TC 1250-0.1FN 100 | 1250 0,1 | 1 Both ferrous and non-ferrous
TC 1250-0.1FN-CAR 100 | 1250 0,1 | 1 Both ferrous and non-ferrous
Sauter TC Coating Thickness Meter
