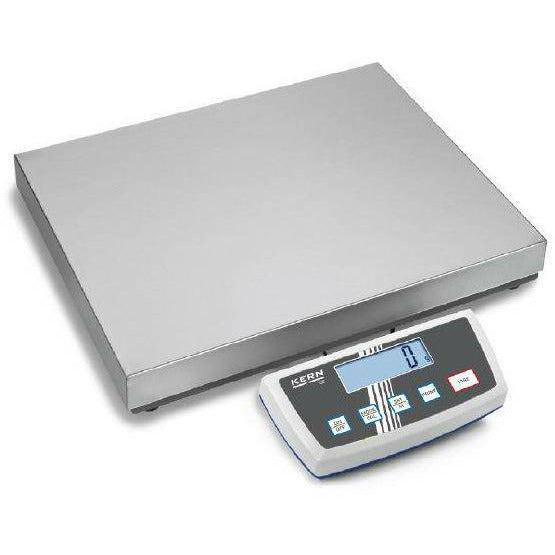

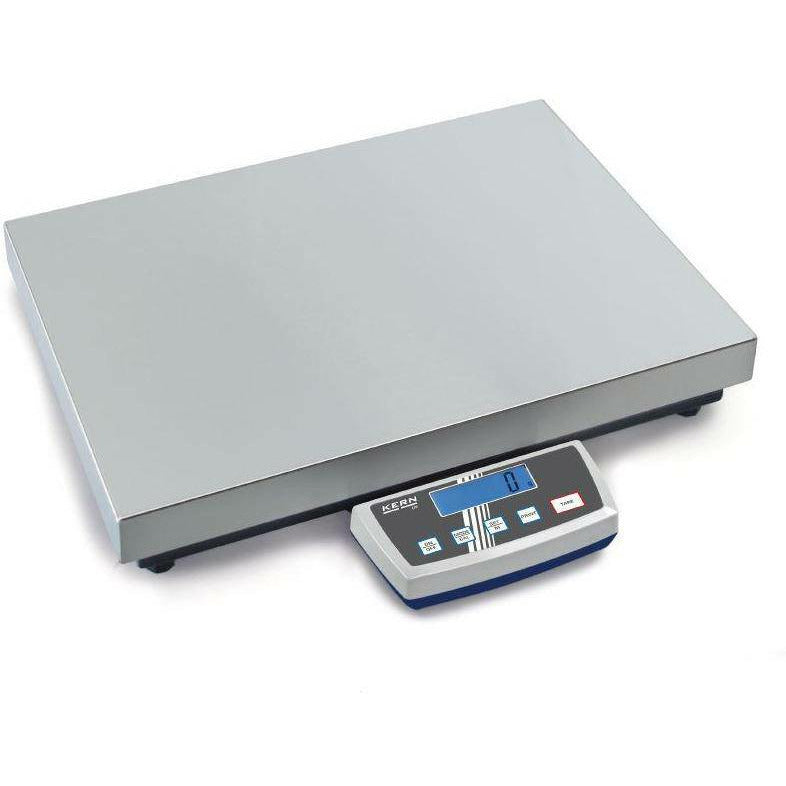

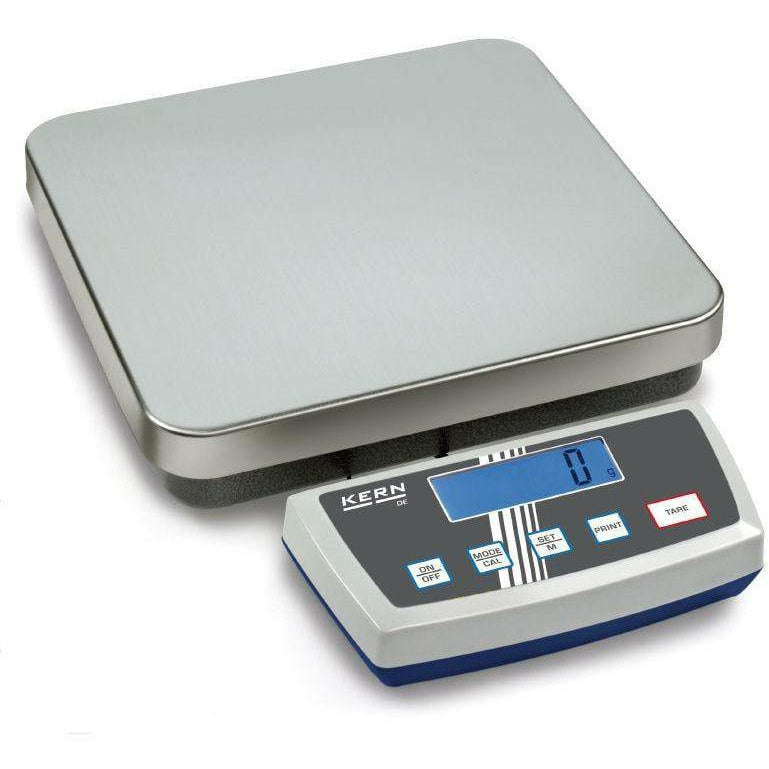

Kern DE platform scale with capacities from 3 kg to 300 kg The Kern DE platform scale available with optional calibration certificate and other accessories such as printers, software and communications.

  • High mobility: Battery or rechargeable battery (optional) operation, compact and flat construction and low weight make this scale ideal for use in several locations (production, warehouse, dispatch department etc.)
  • Flexible positioning of display device: e.g. free-standing or mounted to the wall (optional)
  • Display device: plastic, protection against dust and water splashes IP65
  • weighing plate: stainless steel, painted steel base
  • PRE-TARE function for manual subtraction of a known container weight, useful for checking fill-levels
  • With the recipe function you can weigh the different ingredients of a mixture. As a check, you can also call up the total weight of all the ingredients
  • Freely programmable weighing unit, e.g. display direct in special units such as length of thread g/m, paper weight g/m2, or similar
  • Protective working cover included with delivery

Click here for accessories

Model Weighing capacity Readability Weighing plate
[Max] [d] mm
(WxD | Dia)
DE 120K10A 120 kg 10 g 315  mm x 305  mm
DE 12K1A 12 kg 1 g 315  mm x 305  mm
DE 150K20D 60 kg | 150 kg 20 g | 50 g 318  mm x 308  mm
DE 150K20DL 60 kg | 150 kg 20 g | 50 g 522  mm x 403  mm
DE 150K20DXL 60 kg | 150 kg 20 g | 50 g 650  mm x 500  mm
DE 150K2D 60 kg | 150 kg 2 g | 5 g 315  mm x 305  mm
DE 150K2DL 60 kg | 150 kg 2 g | 5 g 520  mm x 405  mm
DE 15K0.2D 6 kg | 15 kg 200 mg | 500 mg 315  mm x 305  mm
DE 15K2D 6 kg | 15 kg 2 g | 5 g 318  mm x 308  mm
DE 24K2A 24 kg 2 g 315  mm x 305  mm
DE 300K50D 150 kg | 300 kg 50 g | 100 g 522  mm x 403  mm
DE 300K50DL 150 kg | 300 kg 50 g | 100 g 650  mm x 500  mm
DE 300K5DL 150 kg | 300 kg 5 g | 10 g 522  mm x 406  mm
DE 35K0.5D 15 kg | 35 kg 500 mg | 1000 mg 315  mm x 305  mm
DE 35K5D 15 kg | 35 kg 5 g | 10 g 315  mm x 305  mm
DE 35K5DL 15 kg | 35 kg 5 g | 10 g 522  mm x 403  mm
DE 60K10D 30 kg | 60 kg 10 g | 20 g 318  mm x 308  mm
DE 60K10DL 30 kg | 60 kg 10 g | 20 g 522  mm x 403  mm
DE 60K1D 30 kg | 60 kg 1 g | 2 g 318  mm x 308  mm
DE 60K1DL 30 kg | 60 kg 1 g | 2 g 516  mm x 403  mm
DE 60K5A 60 kg 5 g 318  mm x 308  mm
DE 6K0.5A 6 kg 500 mg 318  mm x 308  mm
DE 6K1D 3 kg | 6 kg 1 g | 2 g 318  mm x 308  mm


Standard

Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.Data interface RS-232: To connect the balance to a printer, PC or networkPiece counting: Reference quantities selectable. Display can be switched from piece to weight.Totalising level A: The weights of similar items can be added together and the total can be printed out.Percentage determination: Displays the deviation from the reference weight (100%) in % instead of grams.Weighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model.Vibration-free weighing: (Animal weighing program) Vibrations are filtered out so that a stable weight is obtained.IP 65 protection in accordance with DIN EN 60529:
Designed for temporary contact with liquids. Use a damp cloth for cleaning. Dustproof.Battery operation: The battery type is specified for each device.Universal mains adapter: with universal input and optional input socket adapters for EU, GB, USAStrain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing

Optional

Rechargeable battery pack: rechargeable set
